Neon Private Networking

Private Networking is available on Neon's Scale plan. If you're on a different plan, you can request a trial from the Network Security page in your project's settings. The Neon Private Networking feat...

The Neon Private Networking feature enables secure connections to your Neon databases via AWS PrivateLink, bypassing the open internet for enhanced security.

Overview

In a standard setup, the client application connects to a Neon database over the open internet via the Neon proxy.

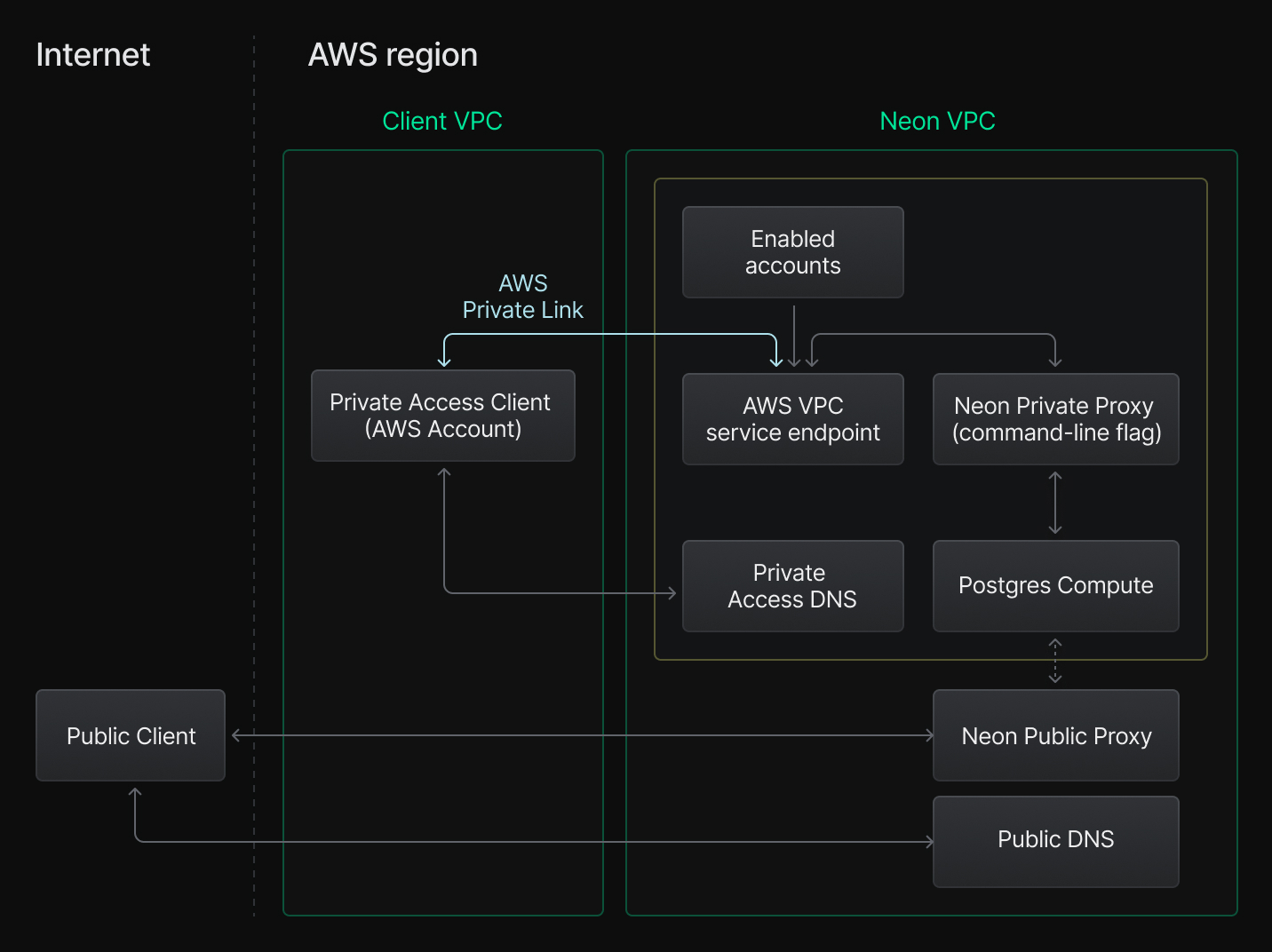

With Neon Private Networking, you can connect to your database via AWS PrivateLink instead of the open internet. In this setup, the client application connects through an AWS endpoint service (provided by Neon) to a Neon proxy instance that is not accessible from the public internet. This endpoint service is available only within the same AWS region as your client application. With Neon Private Networking, all traffic between the client application and the Neon database stays within AWS's private network, rather than crossing the public internet.

Prerequisites

You must be a Neon Business and Scale account user, and your user account must be Neon organization Admin account. You'll encounter an access error if you attempt the setup from a personal Neon account or on a Neon plan that does not offer Private Networking.
Ensure that your client application is deployed on AWS in the same region as the Neon database you plan to connect to. The Private Networking feature is available in all Neon-supported AWS regions. Both your private access client application and Neon database must be in one of these regions.
Neon Private Networking supports both IPv4 and IPv6.
Install the Neon CLI. You will use it to add your VPC endpoint ID to your Neon organization. For installation instructions, see Neon CLI — Install and connect.

Configuration steps

To configure Neon Private Networking, perform the following steps:

Create an AWS VPC endpoint
Do not enable private DNS names for the VPC endpoint until Step 3. You must add the VPC endpoint to your Neon organization first, as described in Step 2.
Add all service names for your region
A region can list multiple endpoint service names. When you create the endpoint, add all of the names listed for your region below (under Service settings). Neon adds service names over time as it expands capacity and updates this page, so re-check that list after a regional expansion. Adding those later additions is optional but improves capacity and reliability. Expansions are announced in the changelog.

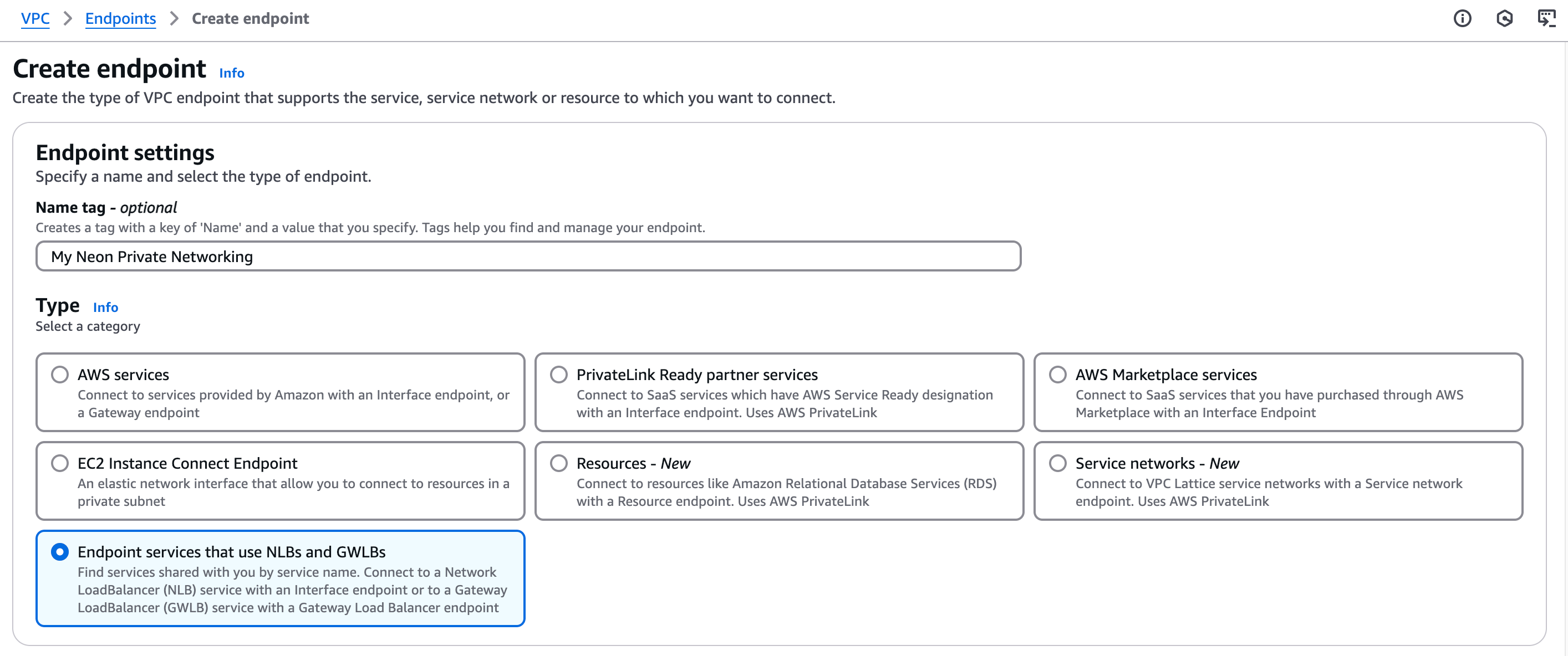

1. Go to the AWS VPC > Endpoints dashboard and select Create endpoint. Make sure you create the endpoint in the same VPC as your client application.
2. Optionally, enter a Name tag for the endpoint (for example, My Neon Private Networking).
3. For Type, select the Endpoint services that use NLBs and GWLBs category.
4. Under Service settings, specify the Service name. Some regions require specifying multiple service names, and service names vary by region:
  - us-east-1: Create entries, one for each of the following:
    - com.amazonaws.vpce.us-east-1.vpce-svc-01aeec2f4b558bc22
    - com.amazonaws.vpce.us-east-1.vpce-svc-01b3c73657ed9bd29
    - com.amazonaws.vpce.us-east-1.vpce-svc-02a0abd91f32f1ed7
    - com.amazonaws.vpce.us-east-1.vpce-svc-040132f4a2dc43d76
    - com.amazonaws.vpce.us-east-1.vpce-svc-0492424e0bf471d59
    - com.amazonaws.vpce.us-east-1.vpce-svc-074ac4111275eaf07
    - com.amazonaws.vpce.us-east-1.vpce-svc-0824666dc46176a87
    - com.amazonaws.vpce.us-east-1.vpce-svc-0adffb07ac0333ac0
    - com.amazonaws.vpce.us-east-1.vpce-svc-0b676a43303caf7d8
    - com.amazonaws.vpce.us-east-1.vpce-svc-0bef3dbe6e4a2df49
    - com.amazonaws.vpce.us-east-1.vpce-svc-0c4afbefbfdf6b031
    - com.amazonaws.vpce.us-east-1.vpce-svc-0d07f7f68c9a99f3b
    - com.amazonaws.vpce.us-east-1.vpce-svc-0de57c578b0e614a9
    - com.amazonaws.vpce.us-east-1.vpce-svc-0f37140e9710ee3af
  - us-east-2: Create entries, one for each of the following:
    - com.amazonaws.vpce.us-east-2.vpce-svc-0056bdfba63cc6ea1
    - com.amazonaws.vpce.us-east-2.vpce-svc-010736480bcef5824
    - com.amazonaws.vpce.us-east-2.vpce-svc-0465c21ce8ba95fb2
    - com.amazonaws.vpce.us-east-2.vpce-svc-0a59493ecf790eccf
    - com.amazonaws.vpce.us-east-2.vpce-svc-0ce57d490de78526a
    - com.amazonaws.vpce.us-east-2.vpce-svc-0d421498ff01becac
    - com.amazonaws.vpce.us-east-2.vpce-svc-0fcb5fccfc8573aa3
  - eu-central-1: Create entries, one for each of the following:
    - com.amazonaws.vpce.eu-central-1.vpce-svc-0260f9dcc9bf59e3e
    - com.amazonaws.vpce.eu-central-1.vpce-svc-04bac3120b20929cd
    - com.amazonaws.vpce.eu-central-1.vpce-svc-05554c35009a5eccb
    - com.amazonaws.vpce.eu-central-1.vpce-svc-05a252e6836f01cfd
    - com.amazonaws.vpce.eu-central-1.vpce-svc-05a5b03b56954593a
    - com.amazonaws.vpce.eu-central-1.vpce-svc-0fef417ecf84ed325
  - eu-west-2: Create entries, one for each of the following:
    - com.amazonaws.vpce.eu-west-2.vpce-svc-0375428488d22c05b
    - com.amazonaws.vpce.eu-west-2.vpce-svc-0c6fedbe99fced2cd
  - us-west-2: Create entries, one for each of the following:
    - com.amazonaws.vpce.us-west-2.vpce-svc-045eebdf710e1066d
    - com.amazonaws.vpce.us-west-2.vpce-svc-060e0d5f582365b8e
    - com.amazonaws.vpce.us-west-2.vpce-svc-07b750990c172f22f
    - com.amazonaws.vpce.us-west-2.vpce-svc-0ed672a4d41b5e687
  - ap-southeast-1: Create entries, one for each of the following:
    - com.amazonaws.vpce.ap-southeast-1.vpce-svc-00eb29496a51d8bee
    - com.amazonaws.vpce.ap-southeast-1.vpce-svc-01c64edf7fe936ac7
    - com.amazonaws.vpce.ap-southeast-1.vpce-svc-028cc7060eb23ff43
    - com.amazonaws.vpce.ap-southeast-1.vpce-svc-07c68d307f9f05687
  - ap-southeast-2:
    - com.amazonaws.vpce.ap-southeast-2.vpce-svc-031161490f5647f32
  - sa-east-1: Create entries, one for each of the following:
    - com.amazonaws.vpce.sa-east-1.vpce-svc-03cf6c871b7ae95e8
    - com.amazonaws.vpce.sa-east-1.vpce-svc-061204a851dbd1a47

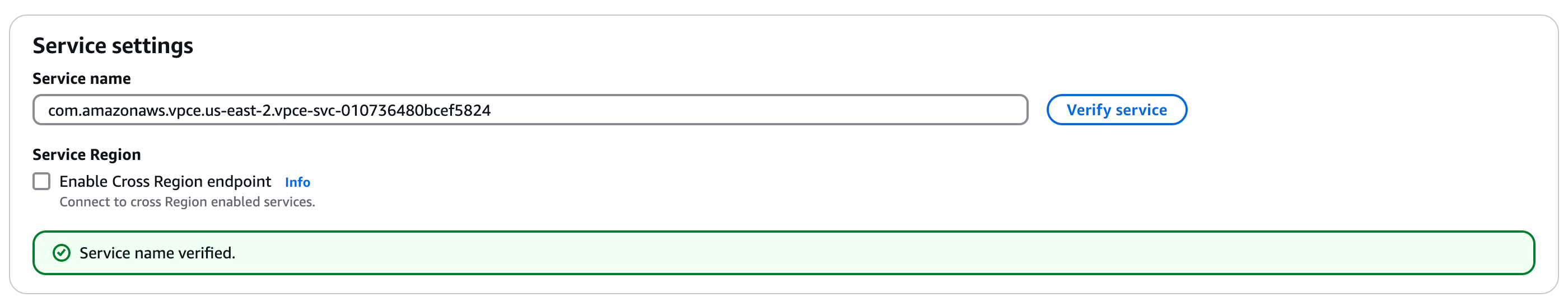

5. Click Verify service. If successful, you should see a Service name verified message.
  If not successful, ensure that your service name matches the region where you're creating the VPC endpoint.

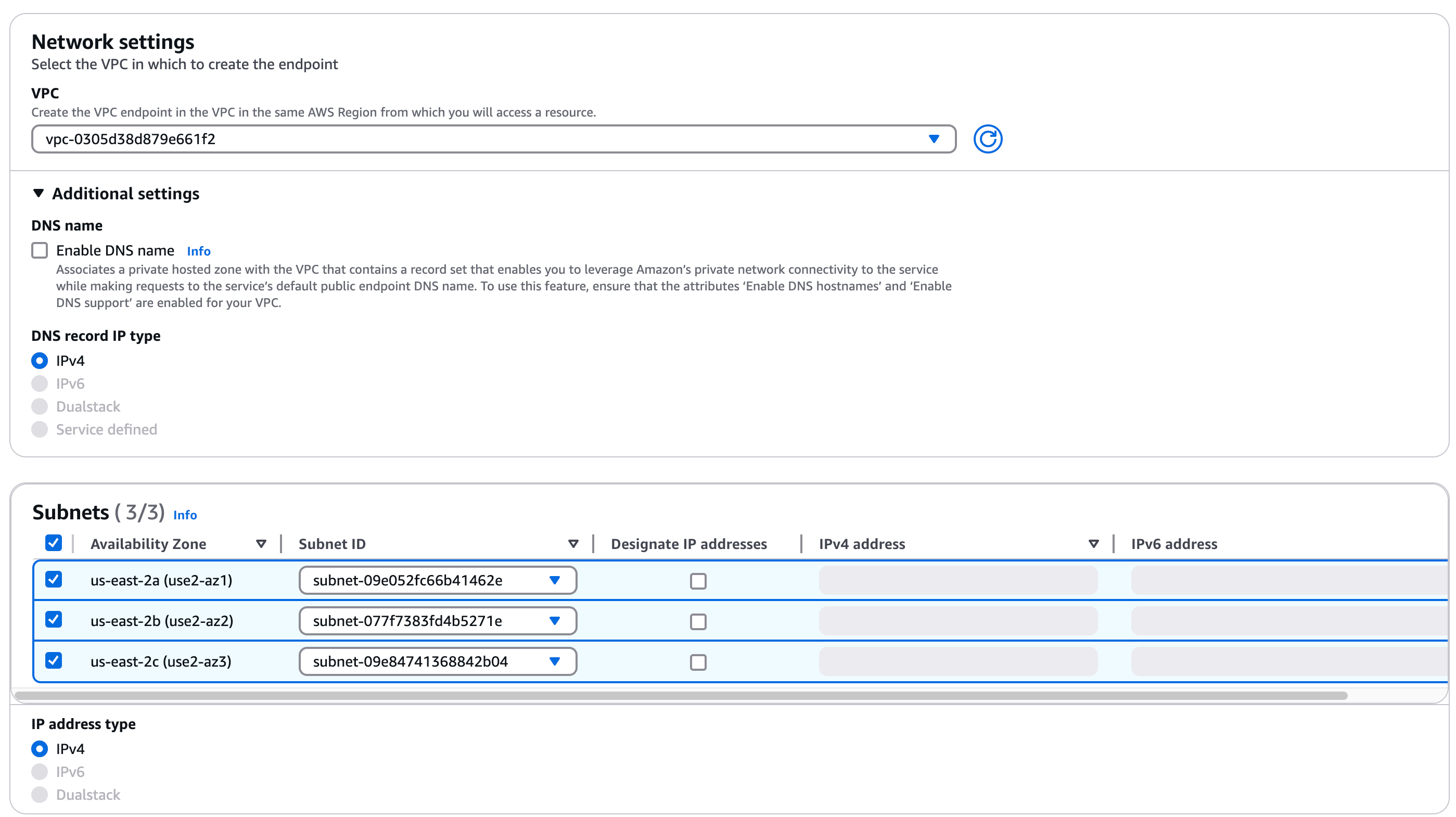

6. Select the VPC where your application is deployed.
7. Add the availability zones and associated subnets you want to support.

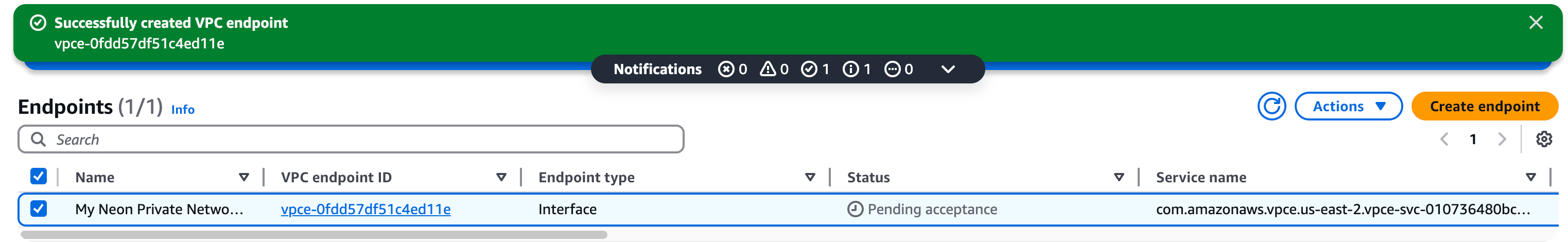

8. Click Create endpoint to complete the setup of the endpoint service.
9. Note your VPC Endpoint ID. You will need it in the next step.
Add your VPC Endpoint ID to your Neon organization
Assign your VPC Endpoint ID to your Neon organization. If the region has multiple Service Names, please assign all VPC Endpoint IDs. You can do this using the Neon CLI or API.
Please note that you must assign the VPC Endpoint ID, not the VPC ID.
- CLI
- API
In the following example, the VPC endpoint ID is assigned to a Neon organization in the specified AWS region using the neon vpc endpoint command.
Bash
neon vpc endpoint assign vpce-1234567890abcdef0 --org-id org-bold-bonus-12345678 --region-id aws-us-east-2
You can find your Neon organization ID in your Neon organization settings, or you can run this Neon CLI command: neon orgs list
You can use the Assign or update a VPC endpoint API to assign a VPC endpoint ID to a Neon organization. You will need to provide your Neon organization ID, region ID, VPC endpoint ID, and a Neon API key.
Bash
curl --request POST \ --url https://console.neon.tech/api/v2/organizations/org-bold-bonus-12345678/vpc/region/aws-us-east-2/vpc_endpoints/vpce-1234567890abcdef0 \ --header 'accept: application/json' \ --header 'authorization: Bearer $NEON_API_KEY' \ --header 'content-type: application/json'
Optionally, you can limit access to a Neon project by allowing connections only from a specific VPC endpoint. For instructions, see Assigning a VPC endpoint restrictions.

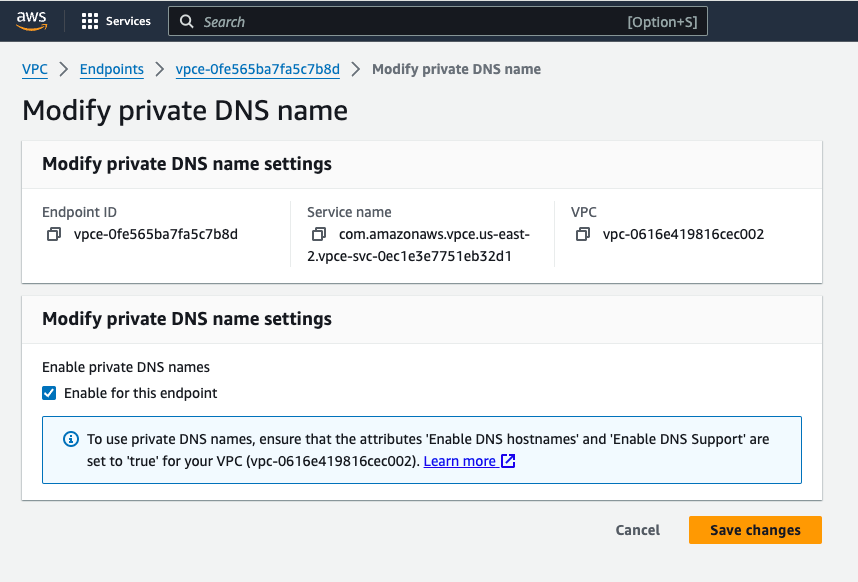

Enable Private DNS
After adding your VPC endpoint ID to your Neon organization, enable private DNS lookup for the VPC endpoint in AWS.
1. In AWS, select the VPC endpoint you created.
2. Choose Modify private DNS name.
3. Select Enable for this endpoint.
4. Save your changes.
Check your database connection string
Your Neon database connection string does not change when using Private Networking.
To verify that your connection is working correctly, you can perform a DNS lookup on your Neon endpoint hostname from within your AWS VPC. It should resolve to the private IP address of the VPC endpoint.
For example, if your Neon database connection string is:
Bash
```
postgresql://alex:AbC123dEf@ep-cool-darkness-123456.us-east-2.aws.neon.tech/dbname?sslmode=require&channel_binding=require
```
You can run the following command from an EC2 instance inside your AWS VPC:
Bash
```
nslookup ep-cool-darkness-123456.us-east-2.aws.neon.tech
```
Restrict public internet access
At this point, it's still possible to connect to a database in your Neon project over the public internet using a database connection string.
You can restrict public internet access to your Neon project via the Neon CLI or API.
- CLI
- API
To block access via the Neon CLI, use the neon projects update command with the --block-public-connections option.
Bash
neon projects update orange-credit-12345678 --block-public-connections true
In the example above, orange-credit-12345678 is the Neon project ID. You can find your Neon project ID under your project's settings in the Neon Console, or by running this Neon CLI command: neon projects list
To block access via the Neon API, use the Update project endpoint with the block_public_connections settings object attribute.
Bash
curl --request PATCH \ --url https://console.neon.tech/api/v2/projects/orange-credit-12345678 \ --header 'accept: application/json' \ --header 'authorization: Bearer $NEON_API_KEY' \ --header 'content-type: application/json' \ --data ' { "project": { "settings": { "block_public_connections": true } } } '

Assigning a VPC endpoint restriction

You can limit access to a Neon project by allowing connections only from specified VPC endpoints. Use the Neon CLI or API to set a restriction.

You can specify a CLI command similar to the following to restrict project access:

Bash

neon vpc project restrict vpce-1234567890abcdef0 --project-id orange-credit-12345678

You will need to provide the VPC endpoint ID and your Neon project ID. If the region has multiple Service Names, all VPC Endpoint IDs must be restricted in the way as above. You can find your Neon project ID under your project's settings in the Neon Console, or by running this Neon CLI command: neon projects list

After adding a restriction, you can check the status of the VPC endpoint to view the restricted project using the vpc endpoint status command. You will need to provide your VPC endpoint ID, region ID, and Neon organization ID.

Bash

neon vpc endpoint status vpce-1234567890abcdef0 --region-id=aws-eu-central-1 --org-id=org-nameless-block-72040075
┌────────────────────────┬───────┬─────────────────────────┬─────────────────────────────┐
│ Vpc Endpoint Id        │ State │ Num Restricted Projects │ Example Restricted Projects │
├────────────────────────┼───────┼─────────────────────────┼─────────────────────────────┤
│ vpce-1234567890abcdef0 │ new   │ 1                       │ orange-credit-12345678      │
└────────────────────────┴───────┴─────────────────────────┴─────────────────────────────┘

The Neon API supports managing project restrictions using the Assign or update a VPC endpoint restriction endpoint. You will need to provide your VPC endpoint ID, Neon project ID, and a Neon API key.

Bash

curl --request POST \
     --url https://console.neon.tech/api/v2/projects/orange-credit-12345678/vpc_endpoints/vpce-1234567890abcdef0 \
     --header 'accept: application/json' \
     --header 'authorization: Bearer $NEON_API_KEY' \
     --header 'content-type: application/json' \
     --data '{"label":"my_vpc"}'

After adding a restriction, you can check the status of the VPC endpoint to view the restricted project using the Retrieve VPC endpoint details API. You will need to provide your VPC endpoint ID, region ID, Neon organization ID, and a Neon API key.

Bash

curl --request GET \
     --url https://console.neon.tech/api/v2/organizations/org-nameless-block-72040075/vpc/region/aws-eu-central-1/vpc_endpoints/vpce-1234567890abcdef0 \
     --header 'accept: application/json' \
     --header 'authorization: Bearer $NEON_API_KEY'

Managing Private Networking using the Neon CLI

You can use the Neon CLI vpc command to manage Private Networking configurations in Neon.

The vpc command includes endpoint and project subcommands for managing VPC endpoints and project-level VPC endpoint restrictions:

vpc endpoint – List, assign, remove, and retrieve the status of VPC endpoints for a Neon organization.
vpc project – List, configure, or remove VPC endpoint restrictions for specific Neon projects.

For more details and examples, see Neon CLI commands — vpc.

Managing Private Networking using the Neon API

The Neon API provides endpoints for managing VPC endpoints and project-level VPC endpoint restrictions:

APIs for managing VPC endpoints

APIs for managing VPC endpoint restrictions

Private Networking limits

The Private Networking feature supports a maximum of 10 private networking configurations per AWS region. Supported AWS regions are listed above.

Limitations

If you remove a VPC endpoint from a Neon organization, that VPC endpoint cannot be added back to the same Neon organization. Attempting to do so will result in an error. In this case, you must set up a new VPC endpoint.
