Schema diff tutorial

In this guide we will create an initial schema on a new database called people on our production branch. We'll then create a development branch called feature/address, following one possible conventio...

In this guide we will create an initial schema on a new database called people on our production branch. We'll then create a development branch called feature/address, following one possible convention for naming feature branches. After making schema changes on feature/address, we'll use the Schema Diff tool on the Branches page to get a side-by-side, GitHub-style visual comparison between the feature/address development branch and production.

Before you start

To complete this tutorial, you'll need:

A Neon account. Sign up here.
To interact with your Neon database from the command line:
- Install the Neon CLI
- Download and install the psql client

Create the Initial Schema

First, create a new database called people on the production branch and add some sample data to it.

Create the database.
In the Neon Console, go to Postgres database > Databases → New Database. Make sure your production branch is selected, then create the new database called people.

Add the schema.

Go to Postgres database > SQL Editor, enter the following SQL statement and click Run to apply.

SQL

CREATE TABLE person (
    id SERIAL PRIMARY KEY,
    name TEXT NOT NULL,
    email TEXT UNIQUE NOT NULL
);

Create the database.
Use the following CLI command to create the people database.
Bash
```
neon databases create --name people
```
Note:
If you have multiple projects, include --project-id. Or set the project context so you don't have to specify project id in every command. Example:
Bash
```
neon set-context --project-id empty-glade-66712572
```
You can find your project ID on the Settings page in the Neon Console.

Copy your connection string:

Bash

neon connection-string --database-name people

Connect to the people database with psql:

Bash

psql 'postgresql://neondb_owner:*********@ep-crimson-frost-a5i6p18z.us-east-2.aws.neon.tech/people?sslmode=require&channel_binding=require'

Create the schema:

SQL

CREATE TABLE person (
    id SERIAL PRIMARY KEY,
    name TEXT NOT NULL,
    email TEXT UNIQUE NOT NULL
);

Use the Create database API to create the people database, specifying the project_id, branch_id, database name, and database owner_name in the API call.

Bash

curl --request POST \
--url https://console.neon.tech/api/v2/projects/royal-band-06902338/branches/br-bitter-bird-a56n6lh4/databases \
--header 'accept: application/json' \
--header 'authorization: Bearer $NEON_API_KEY' \
--header 'content-type: application/json' \
--data '{
   "database": {
      "name": "people",
      "owner_name": "alex"
   }
}'

Retrieve your database connection string using Get connection URI endpoint, specifying the required project_id, branch_id, database_name, and role_name parameters.

Bash

curl --request GET \
  --url 'https://console.neon.tech/api/v2/projects/royal-band-06902338/connection_uri?branch_id=br-bitter-bird-a56n6lh4&database_name=people&role_name=alex' \
  --header 'accept: application/json' \
  --header 'authorization: Bearer $NEON_API_KEY'

The API call will return an connection string similar to this one:

JSON

{
  "uri": "postgresql://alex:*********@ep-green-surf-a5yaumj3-pooler.us-east-2.aws.neon.tech/people?sslmode=require&channel_binding=require"
}

Connect to the people database with psql:

Bash

psql 'postgresql://alex:*********@ep-green-surf-a5yaumj3-pooler.us-east-2.aws.neon.tech/people?sslmode=require&channel_binding=require'

Create the schema:

SQL

CREATE TABLE person (
    id SERIAL PRIMARY KEY,
    name TEXT NOT NULL,
    email TEXT UNIQUE NOT NULL
);

Create a development branch
Create a new development branch off of production. This branch will be an exact, isolated copy of production.
For the purposes of this tutorial, name the branch feature/address, which could work as a good convention for creating isolated branches for working on specific features.
- Console
- CLI
- API
Create the development branch
On the Branches page, click Create Branch, making sure of the following:
Select production as the parent branch.
Name the branch feature/address.
Verify the schema on your new branch

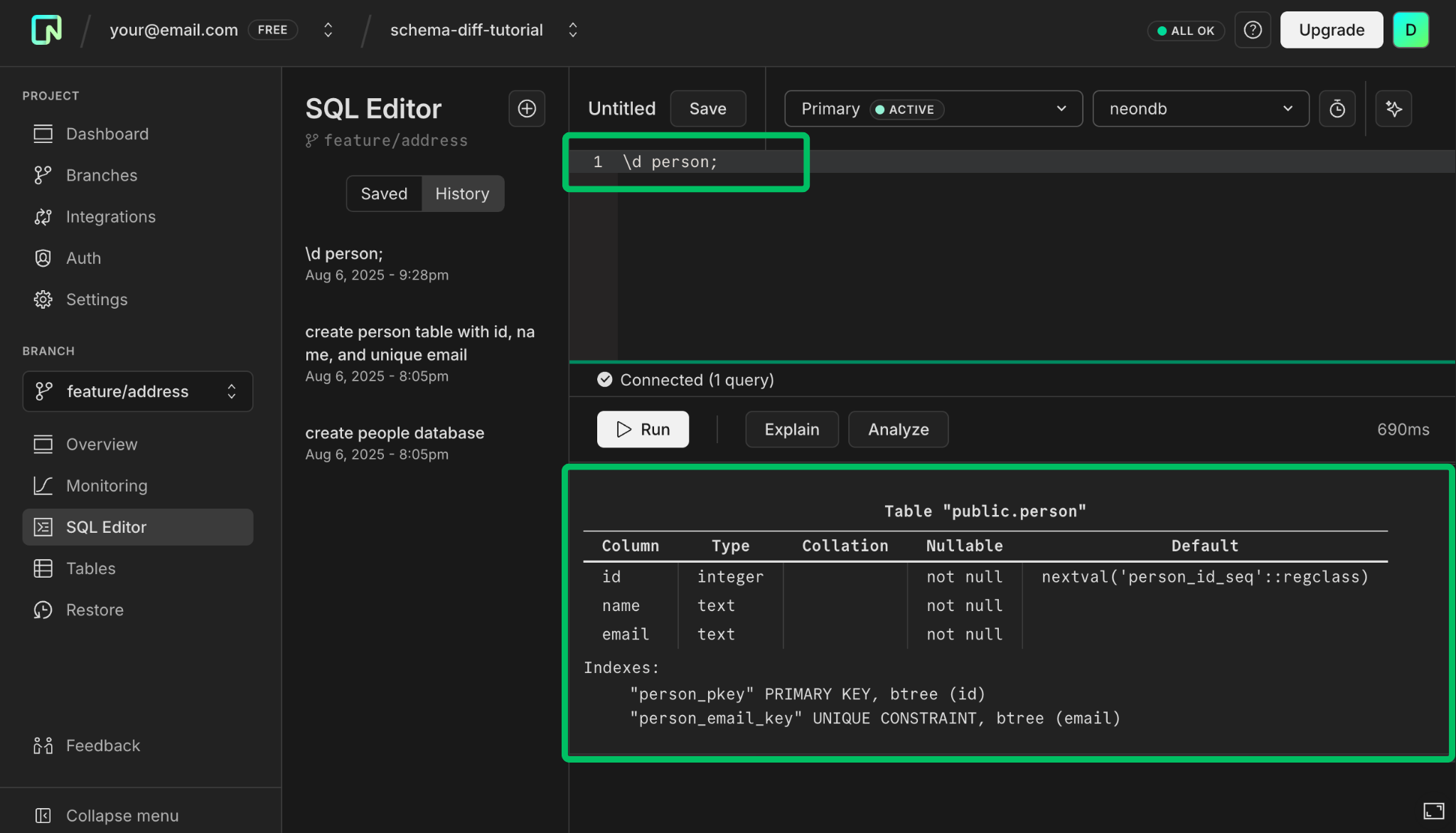

From the SQL Editor, use the meta-command \d person to inspect the schema of the person table. Make sure that the people database on the branch feature/address is selected.
Create the branch
If you're still in psql, exit using \q.
Using the Neon CLI, create the development branch. Include --project-id if you have multiple projects.
Bash
neon branches create --name feature/address --parent production
Verify the schema
To verify that this branch includes the initial schema created on production, connect to feature/address, then view the person table.
Get the connection string for the people database on branch feature/address using the CLI.
Bash
neon connection-string feature/address --database-name people
This gives you the connection string which you can then copy.
Bash
postgresql://neondb_owner:*********@ep-hidden-rain-a5pe72oi.us-east-2.aws.neon.tech/people?sslmode=require&channel_binding=require
Connect to people using psql.
Bash
psql 'postgresql://neondb_owner:*********@ep-hidden-rain-a5pe72oi.us-east-2.aws.neon.tech/people?sslmode=require&channel_binding=require'
View the schema for the person table we created earlier.
Bash
\d person
Which shows you the schema:
Bash
Table "public.person" Column | Type | Collation | Nullable | Default --------+---------+-----------+----------+------------------------------------ id | integer | | not null | nextval('person_id_seq'::regclass) name | text | | not null | email | text | | not null | Indexes: "person_pkey" PRIMARY KEY, btree (id) "person_email_key" UNIQUE CONSTRAINT, btree (email)
You can do the same thing for your production branch and get identical results.
Using the Create branch API, create a development branch named feature/address. You'll need to specify the project_id, parent_id, branch name, and add a read_write compute (you need a compute to connect to the branch).
Bash
curl --request POST \ --url https://console.neon.tech/api/v2/projects/royal-band-06902338/branches \ --header 'accept: application/json' \ --header 'authorization: Bearer $NEON_API_KEY' \ --header 'content-type: application/json' \ --data '{ "branch": { "name": "feature/address", "parent_id": "br-bitter-bird-a56n6lh4" }, "endpoints": [ { "type": "read_write" } ] }'

Update schema on a dev branch

Let's introduce some differences between the two branches. Add a new table to store addresses on the feature/address branch.

In the SQL Editor, make sure you select feature/address as the branch and people as the database.

Enter this SQL statement to create a new address table.

SQL

CREATE TABLE address (
    id SERIAL PRIMARY KEY,
    person_id INTEGER NOT NULL,
    street TEXT NOT NULL,
    city TEXT NOT NULL,
    state TEXT NOT NULL,
    zip_code TEXT NOT NULL,
    FOREIGN KEY (person_id) REFERENCES person(id)
);

Connect to your feature/address branch

By adding --psql to the CLI command, you can start the psql connection without having to enter the connection string directly:

Bash

neon connection-string feature/address --database-name people --psql

Response:

Bash

INFO: Connecting to the database using psql...
psql (16.1, server 16.2)
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off)
Type "help" for help.

people=>

Add a new address table

SQL

CREATE TABLE address (
    id SERIAL PRIMARY KEY,
    person_id INTEGER NOT NULL,
    street TEXT NOT NULL,
    city TEXT NOT NULL,
    state TEXT NOT NULL,
    zip_code TEXT NOT NULL,
    FOREIGN KEY (person_id) REFERENCES person(id)
);

Retrieve the database connection string for the feature/address branch using Get connection URI endpoint:

Bash

curl --request GET \
  --url 'https://console.neon.tech/api/v2/projects/royal-band-06902338/connection_uri?branch_id=br-mute-dew-a5930esi&database_name=people&role_name=alex' \
  --header 'accept: application/json' \
  --header 'authorization: Bearer $NEON_API_KEY'

The API call will return an connection string similar to this one:

JSON

{
  "uri": "postgresql://alex:*********@ep-hidden-sun-a5de9i5h-pooler.us-east-2.aws.neon.tech/people?sslmode=require&channel_binding=require"
}

Connect to the people database on the feature/address branch with psql:

Bash

psql 'postgresql://alex:*********@ep-hidden-sun-a5de9i5h-pooler.us-east-2.aws.neon.tech/people?sslmode=require&channel_binding=require'

Add a new address table.

SQL

CREATE TABLE address (
    id SERIAL PRIMARY KEY,
    person_id INTEGER NOT NULL,
    street TEXT NOT NULL,
    city TEXT NOT NULL,
    state TEXT NOT NULL,
    zip_code TEXT NOT NULL,
    FOREIGN KEY (person_id) REFERENCES person(id)
);

View the schema differences

Now that you have some differences between your branches, you can view the schema differences.

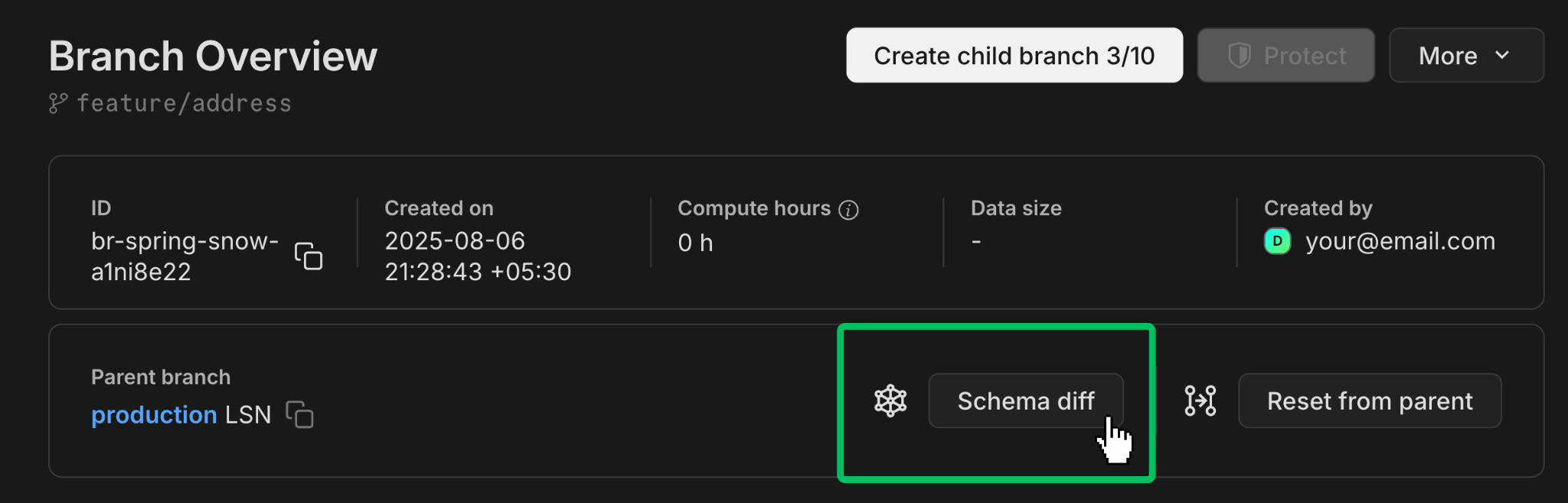

Click on feature/address to open the detailed view, then click Schema diff.
Make sure you select people as the database and then click Compare.

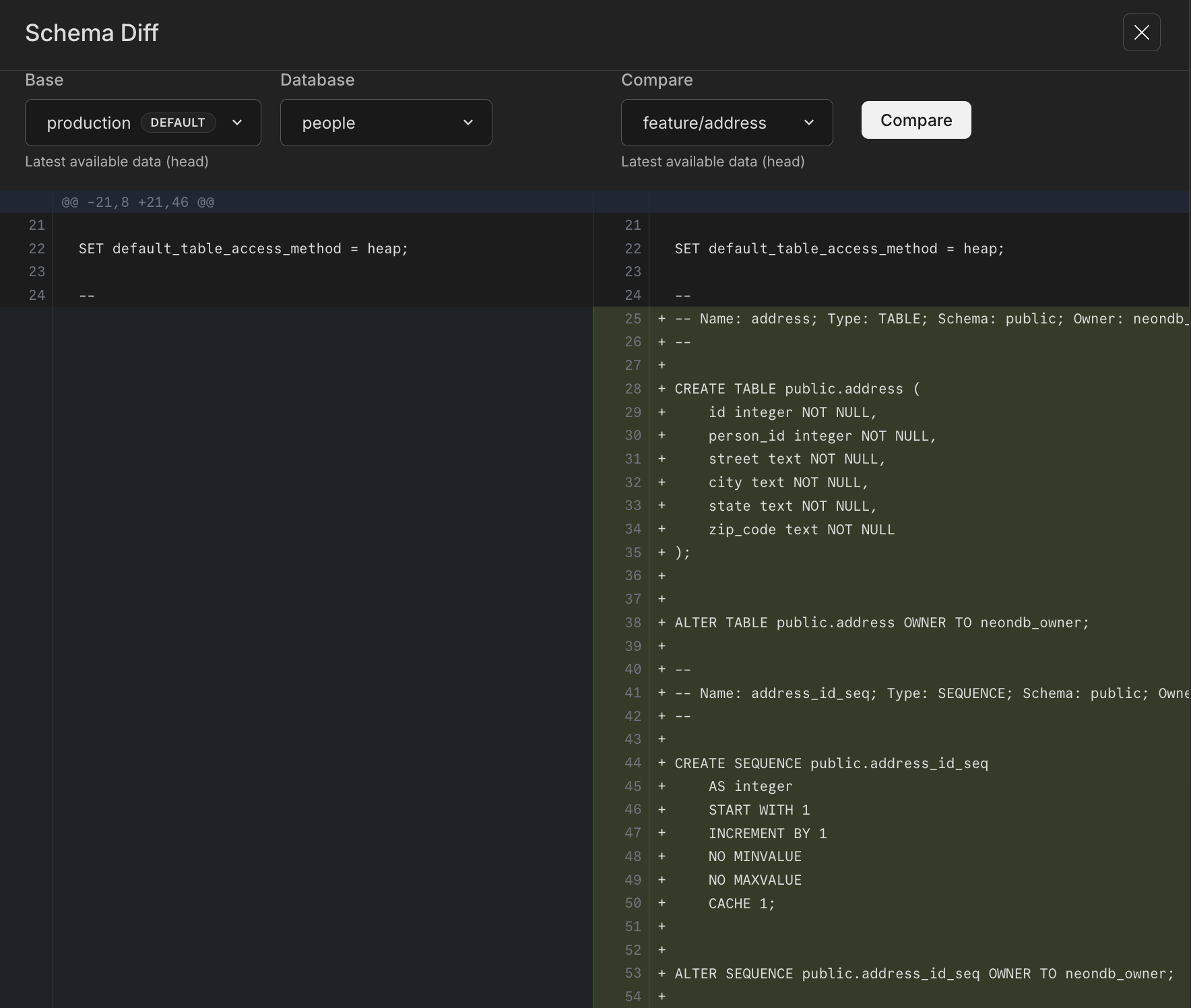

You will see the schema differences between feature/address and its parent production, including the new address table that we added to the feature/address branch.

You can also launch Schema Diff from the Restore page, usually as part of verifying schemas before you restore a branch to its own or another branch's history. See Instant restore for more info.

Compare the schema of feature/address to its parent branch using the schema-diff command.

Bash

neon branches schema-diff production feature/address --database people

The result shows a comparison between the feature/address branch and its parent branch for the database people. The output indicates that the address table and its related sequences and constraints have been added in the feature/address branch but are not present in its parent branch production.

diff

--- Database: people (Branch: br-falling-dust-a5bakdqt)
+++ Database: people (Branch: br-morning-heart-a5ltt10i)
@@ -20,8 +20,46 @@

 SET default_table_access_method = heap;

 --
+-- Name: address; Type: TABLE; Schema: public; Owner: neondb_owner
+--
+
+CREATE TABLE public.address (
+    id integer NOT NULL,
+    person_id integer NOT NULL,
+    street text NOT NULL,
+    city text NOT NULL,
+    state text NOT NULL,
+    zip_code text NOT NULL
+);
+
+
+ALTER TABLE public.address OWNER TO neondb_owner;
+
+...

Compare the schema of the feature/address branch to its parent branch using the compare-schema API.

Bash

curl --request GET \
     --url 'https://console.neon.tech/api/v2/projects/royal-band-06902338/branches/br-mute-dew-a5930esi/compare_schema?base_branch_id=br-bitter-bird-a56n6lh4&db_name=neondb' \
     --header 'accept: application/json' \
     --header 'authorization: Bearer $NEON_API_KEY' | jq -r '.diff'

Parameter	Description	Required	Example
`<project_id>`	The ID of your Neon project.	Yes	`royal-band-06902338`
`<branch_id>`	The ID of the target branch to compare.	Yes	`br-mute-dew-a5930esi`
`<base_branch_id>`	The ID of the base branch for comparison (the parent branch in this case).	Yes	`br-bitter-bird-a56n6lh4`
`<db_name>`	The name of the database in the target branch.	Yes	`people`
`Authorization`	Bearer token for API access (your Neon API key)	Yes	`$NEON_API_KEY`

Note: The optional jq -r '.diff' command extracts the diff field from the JSON response and outputs it as plain text to make it easier to read. This command would not be necessary when using the endpoint programmatically.

The result shows a comparison between the feature/address branch and its parent branch for the database people. The output indicates that the address table and its related sequences and constraints have been added to the feature/address branch but are not present in its parent branch.

diff

--- a/people
+++ b/people
@@ -21,6 +21,44 @@
 SET default_table_access_method = heap;

 --
+-- Name: address; Type: TABLE; Schema: public; Owner: alex
+--
+
+CREATE TABLE public.address (
+    id integer NOT NULL,
+    person_id integer NOT NULL,
+    street text NOT NULL,
+    city text NOT NULL,
+    state text NOT NULL,
+    zip_code text NOT NULL
+);
+
+
+ALTER TABLE public.address OWNER TO alex;
+
+--
+-- Name: address_id_seq; Type: SEQUENCE; Schema: public; Owner: alex
+--
+
+CREATE SEQUENCE public.address_id_seq
+    AS integer
+    START WITH 1
+    INCREMENT BY 1
+    NO MINVALUE
+    NO MAXVALUE
+    CACHE 1;
+
+
+ALTER SEQUENCE public.address_id_seq OWNER TO alex;
+
+--
+-- Name: address_id_seq; Type: SEQUENCE OWNED BY; Schema: public; Owner: alex
+--
+
+ALTER SEQUENCE public.address_id_seq OWNED BY public.address.id;
+
+
+--
 -- Name: person; Type: TABLE; Schema: public; Owner: alex
 --

@@ -56,6 +94,13 @@

 --
+-- Name: address id; Type: DEFAULT; Schema: public; Owner: alex
+--
+
+ALTER TABLE ONLY public.address ALTER COLUMN id SET DEFAULT nextval('public.address_id_seq'::regclass);
+
+
+--
 -- Name: person id; Type: DEFAULT; Schema: public; Owner: alex
 --

@@ -63,6 +108,14 @@

 --
+-- Name: address address_pkey; Type: CONSTRAINT; Schema: public; Owner: alex
+--
+
+ALTER TABLE ONLY public.address
+    ADD CONSTRAINT address_pkey PRIMARY KEY (id);
+
+
+--
 -- Name: person person_email_key; Type: CONSTRAINT; Schema: public; Owner: alex
 --

@@ -79,6 +132,14 @@

 --
+-- Name: address address_person_id_fkey; Type: FK CONSTRAINT; Schema: public; Owner: alex
+--
+
+ALTER TABLE ONLY public.address
+    ADD CONSTRAINT address_person_id_fkey FOREIGN KEY (person_id) REFERENCES public.person(id);
+
+
+--
 -- Name: DEFAULT PRIVILEGES FOR SEQUENCES; Type: DEFAULT ACL; Schema: public; Owner: cloud_admin
 --
