Summary: Integrate ImageKit.io with Lakebase Postgres for client-side media uploads to ImageKit's CDN, with file metadata stored in a Neon database. Backend authentication generates signed parameters (token, expire, signature) so uploads never touch your server. Includes backend examples for Node.js (Hono) and Python (Flask), a curl test workflow, and SQL patterns for per-user metadata retrieval.

Store files via ImageKit.io and track metadata in Neon

ImageKit.io is a cloud-based image and video optimization and delivery platform. It provides real-time manipulation, storage, and delivery via a global CDN, simplifying media management for web and mobile applications.

Neon now offers native storage:

Neon Object Storage is S3-compatible object storage built into the Neon backend. Object storage branches with your database: each branch gets its own isolated namespace, so you can test file uploads in preview branches without touching production. No separate cloud account needed. Use any S3-compatible SDK with your existing Neon credential.

For more information, see Neon Object Storage.

This guide demonstrates how to integrate ImageKit.io with Neon. You'll learn how to upload files directly from the client-side to ImageKit.io using securely generated authentication parameters from your backend, and then store the resulting file metadata (like the ImageKit File ID and URL) in your Lakebase Postgres database.

1. Navigate to the Neon Console to create a new Neon project.
2. Copy the connection string by clicking the Connect button in the Console nav. For more information, see Connect from any application.

1. Sign up for a free or paid account at ImageKit.io.

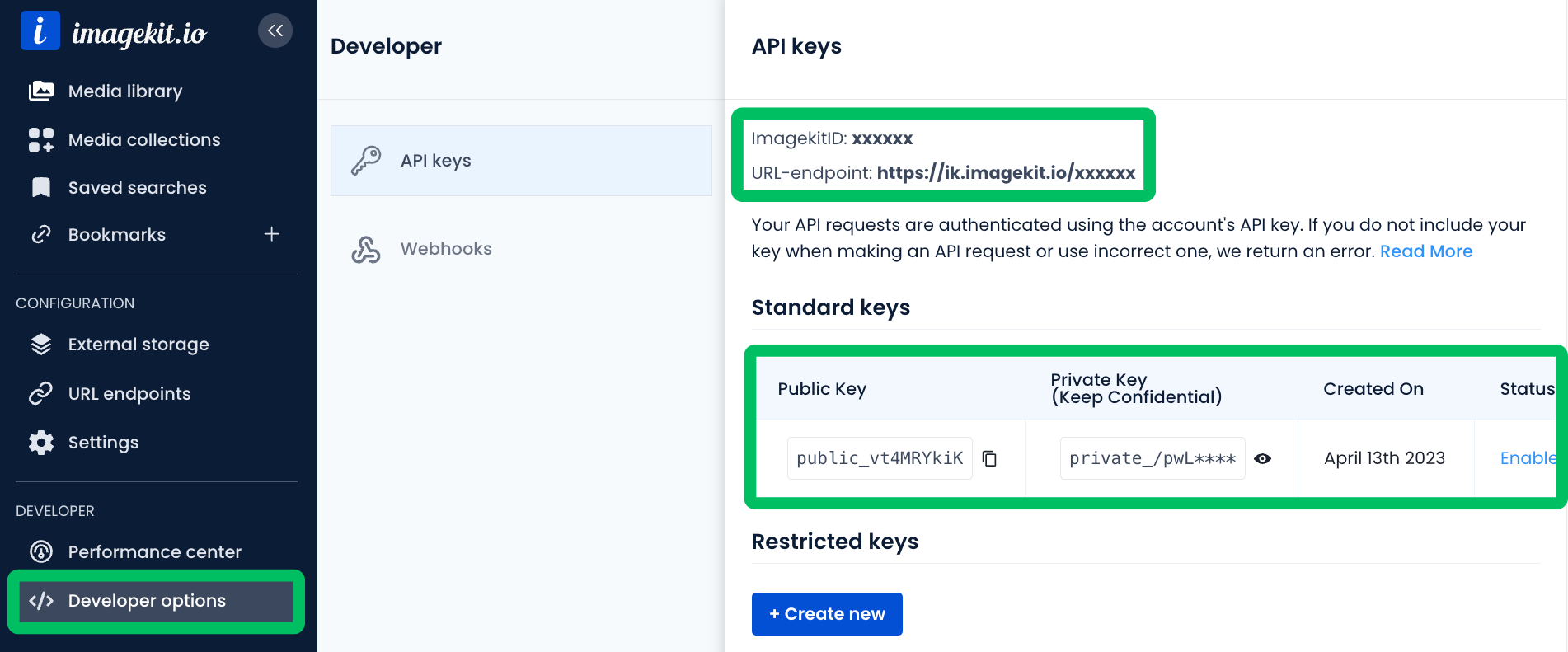

2. Once logged in, navigate to the Developer options section in the dashboard sidebar.
3. Under API Keys, note your Public Key, Private Key, and URL Endpoint. These are essential for interacting with the ImageKit API and SDKs.

We need a table in Lakebase Postgres to store metadata about the files uploaded to ImageKit.io. This allows your application to reference the media stored in ImageKit.

1. Connect to your database on Neon using the Neon SQL Editor or a client like psql. Create a table to store relevant details:

   CREATE TABLE IF NOT EXISTS imagekit_files (
       id SERIAL PRIMARY KEY,
       file_id TEXT NOT NULL UNIQUE,    -- ImageKit.io unique File ID
       file_url TEXT NOT NULL,          -- ImageKit CDN URL for the file
       user_id TEXT NOT NULL,           -- User associated with the file
       upload_timestamp TIMESTAMPTZ DEFAULT NOW()
   );

2. Run the SQL statement. You can customize this table by adding or removing columns (like width, height, tags, etc.) based on the information you need from ImageKit and your application's requirements.

Note: Securing metadata with RLS

If you use Neon's Row Level Security (RLS), remember to apply appropriate access policies to the imagekit_files table. This controls who can view or modify the object references stored in Lakebase Postgres based on your RLS rules.

Note that these policies apply only to the metadata in Neon. Access control for the actual files on ImageKit is managed via ImageKit features (like private files or signed URLs, if needed). The default setup makes files publicly accessible via their URL.

The recommended approach for client-side uploads is to generate secure authentication parameters on your backend. The client (for example, a web browser) uses these parameters, along with your public API key, to upload the file directly to ImageKit's Upload API. After a successful upload, the client sends the returned metadata (like fileId and url) back to your backend to be saved in Lakebase Postgres.

This requires two backend endpoints:

1. /generate-auth-params: Generates temporary authentication parameters (token, expire, signature).
2. /save-metadata: Receives file metadata from the client after a successful upload to ImageKit and saves it to the Neon database.

JavaScript

We'll use Hono for the server, imagekit for ImageKit interaction, and @neondatabase/serverless for Neon.

First, install the necessary dependencies:

npm install imagekit @neondatabase/serverless @hono/node-server hono dotenv

Create a .env file with your credentials:

# ImageKit.io Credentials
IMAGEKIT_PUBLIC_KEY=your_imagekit_public_key
IMAGEKIT_PRIVATE_KEY=your_imagekit_private_key
IMAGEKIT_URL_ENDPOINT=your_imagekit_url_endpoint

# Neon Connection String
DATABASE_URL=your_neon_database_connection_string

The following code snippet demonstrates this workflow:

import { serve } from '@hono/node-server';
import { Hono } from 'hono';
import ImageKit from 'imagekit';
import { neon } from '@neondatabase/serverless';
import 'dotenv/config';

const imagekit = new ImageKit({
  publicKey: process.env.IMAGEKIT_PUBLIC_KEY,
  privateKey: process.env.IMAGEKIT_PRIVATE_KEY,
  urlEndpoint: process.env.IMAGEKIT_URL_ENDPOINT,
});

const sql = neon(process.env.DATABASE_URL);
const app = new Hono();

// Replace this with your actual user authentication logic
const authMiddleware = async (c, next) => {
  // Example: Validate JWT, session, etc. and set user ID
  c.set('userId', 'user_123'); // Static ID for demonstration
  await next();
};

// 1. Generate authentication parameters for client-side upload
app.get('/generate-auth-params', authMiddleware, (c) => {
  try {
    const authParams = imagekit.getAuthenticationParameters();
    // These params (token, expire, signature) are sent to the client
    // The client uses these + public key to upload directly to ImageKit
    return c.json({ success: true, ...authParams });
  } catch (error) {
    console.error('Auth Param Generation Error:', error);
    return c.json({ success: false, error: 'Failed to generate auth params' }, 500);
  }
});

// 2. Save metadata after client confirms successful upload to ImageKit
app.post('/save-metadata', authMiddleware, async (c) => {
  try {
    const userId = c.get('userId');
    // Client sends metadata received from ImageKit after upload
    const { fileId, url } = await c.req.json();

    if (!fileId || !url) {
      throw new Error('fileId and url are required from ImageKit response');
    }

    // Insert metadata into Neon database
    await sql`
      INSERT INTO imagekit_files (file_id, file_url, user_id)
      VALUES (${fileId}, ${url}, ${userId})
    `;

    console.log(`Metadata saved for ImageKit file: ${fileId}`);
    return c.json({ success: true });
  } catch (error) {
    console.error('Metadata Save Error:', error.message);
    return c.json({ success: false, error: 'Failed to save metadata' }, 500);
  }
});

const port = 3000;
serve({ fetch: app.fetch, port }, (info) => {
  console.log(`Server running at http://localhost:${info.port}`);
});

Explanation

1. Setup: Initializes the Lakebase Postgres database client (sql), the Hono web framework (app), and the ImageKit Node.js SDK (imagekit) using credentials from environment variables.
2. Authentication: Includes a placeholder authMiddleware. Replace this with your actual user authentication logic to ensure only authenticated users can generate upload parameters and save metadata.
3. API endpoints:
   • /generate-auth-params (GET): Uses the ImageKit SDK's getAuthenticationParameters() method to create a short-lived token, expire timestamp, and signature. These are returned to the client.
   • /save-metadata (POST): This endpoint is called by the client after it has successfully uploaded a file directly to ImageKit's Upload API. The client sends the relevant metadata returned by ImageKit (like fileId, url, thumbnailUrl, etc.). The endpoint then inserts this metadata, along with the authenticated userId, into the imagekit_files table in Lakebase Postgres.

Python

We'll use Flask, imagekitio (ImageKit Python SDK), and psycopg2.

First, install the necessary dependencies:

pip install Flask imagekitio psycopg2-binary python-dotenv

Create a .env file with your credentials:

# ImageKit.io Credentials
IMAGEKIT_PUBLIC_KEY=your_imagekit_public_key
IMAGEKIT_PRIVATE_KEY=your_imagekit_private_key
IMAGEKIT_URL_ENDPOINT=your_imagekit_url_endpoint # for example, https://ik.imagekit.io/your_instance_id

# Neon Connection String
DATABASE_URL=your_neon_database_connection_string

The following code snippet demonstrates this workflow:

import os

import psycopg2
from dotenv import load_dotenv
from flask import Flask, jsonify, request
from imagekitio.client import ImageKit

load_dotenv()

imagekit = ImageKit(
    public_key=os.getenv("IMAGEKIT_PUBLIC_KEY"),
    private_key=os.getenv("IMAGEKIT_PRIVATE_KEY"),
    url_endpoint=os.getenv("IMAGEKIT_URL_ENDPOINT"),
)

app = Flask(__name__)


# Use a global PostgreSQL connection pool in production instead of connecting per request
def get_db_connection():
    return psycopg2.connect(os.getenv("DATABASE_URL"))


# Replace this with your actual user authentication logic
def get_authenticated_user_id(request):
    # Example: Validate Authorization header, session cookie, etc.
    return "user_123"  # Static ID for demonstration


# 1. Generate authentication parameters for client-side upload
@app.route("/generate-auth-params", methods=["GET"])
def generate_auth_params_route():
    try:
        user_id = get_authenticated_user_id(request)
        if not user_id:
            return jsonify({"success": False, "error": "Unauthorized"}), 401

        # Generate token, expire timestamp, and signature
        auth_params = imagekit.get_authentication_parameters()
        return jsonify(
            {
                "success": True,
                "token": auth_params["token"],
                "expire": auth_params["expire"],
                "signature": auth_params["signature"]
            }
        ), 200

    except Exception as e:
        print(f"Auth Param Generation Error: {e}")
        return (
            jsonify({"success": False, "error": "Failed to generate auth params"}),
            500,
        )


# 2. Save metadata after client confirms successful upload to ImageKit
@app.route("/save-metadata", methods=["POST"])
def save_metadata_route():
    conn = None
    cursor = None
    try:
        user_id = get_authenticated_user_id(request)
        if not user_id:
            return jsonify({"success": False, "error": "Unauthorized"}), 401

        data = request.get_json()
        file_id = data.get("fileId")
        url = data.get("url")

        if not file_id or not url:
            raise ValueError("fileId and url are required from ImageKit response")

        # Insert metadata into Neon database
        conn = get_db_connection()
        cursor = conn.cursor()
        cursor.execute(
            """
            INSERT INTO imagekit_files (file_id, file_url, user_id)
            VALUES (%s, %s, %s)
            """,
            (file_id, url, user_id),
        )
        conn.commit()
        print(f"Metadata saved for ImageKit file: {file_id}")
        return jsonify({"success": True}), 201

    except (psycopg2.Error, ValueError) as e:
        print(f"Metadata Save Error: {e}")
        return (
            jsonify({"success": False, "error": "Failed to save metadata"}),
            500,
        )
    except Exception as e:
        print(f"Unexpected Metadata Save Error: {e}")
        return jsonify({"success": False, "error": "Server error"}), 500
    finally:
        if cursor:
            cursor.close()
        if conn:
            conn.close()


if __name__ == "__main__":
    app.run(port=3000, debug=True)

Explanation

1. Setup: Initializes the Flask web framework (app), the PostgreSQL client function (get_db_connection) for Lakebase Postgres, and the ImageKit Python SDK (imagekit) using environment variables.
2. Authentication: Includes a placeholder get_authenticated_user_id function. Replace this with your actual user authentication logic.
3. API endpoints:
   • /generate-auth-params (GET): Uses the ImageKit SDK's get_authentication_parameters() method to create token, expire, and signature. These are returned to the client, usually as JSON.
   • /save-metadata (POST): Called by the client after it has successfully uploaded a file directly to ImageKit. The client provides the metadata returned by ImageKit. The backend validates the required fields and inserts the data along with the userId into the imagekit_files table in Lakebase Postgres using psycopg2.
4. Database Connection: The example shows creating a new connection per request. In production, use a global connection pool for better performance.

This workflow involves getting authentication parameters from your backend, using those parameters to upload the file directly to ImageKit via curl, and then notifying your backend to save the metadata.

1. Get authentication parameters: Send a GET request to your backend's /generate-auth-params endpoint.

   curl -X GET http://localhost:3000/generate-auth-params

   Expected response: A JSON object containing the necessary parameters. For example:

   {
     "success": true,
     "token": "20xxxx-xxxx-xxxx-a350-a463b3dd544e",
     "expire": 1745435716,
     "signature": "ffxxxxxx5f19b6a22e2bd6bd90ae8a7db21"
   }

2. Upload file directly to ImageKit: Use the parameters obtained in Step 1, your ImageKit Public Key, and the file path to send a POST request with multipart/form-data directly to the ImageKit Upload API.

   curl -X POST https://upload.imagekit.io/api/v1/files/upload \
        -F "file=@/path/to/your/test-image.png" \
        -F "publicKey=<YOUR_IMAGEKIT_PUBLIC_KEY>" \
        -F "token=<TOKEN_FROM_STEP_1>" \
        -F "expire=<EXPIRE_FROM_STEP_1>" \
        -F "signature=<SIGNATURE_FROM_STEP_1>" \
        -F "fileName=test-image.png" \
        -F "useUniqueFileName=true"

   Expected response (from ImageKit): A successful upload returns a JSON object with details about the uploaded file. Note the fileId, url, etc.

   {
       "fileId": "<YOUR_FILE_ID>",
       "name": "<YOUR_FILE_NAME>",
       "size": "<YOUR_FILE_SIZE>",
       "versionInfo": {
           "id": "<YOUR_FILE_ID>",
           "name": "Version 1"
       },
       "filePath": "<YOUR_FILE_PATH>",
       "url": "https://ik.imagekit.io/<YOUR_INSTANCE_ID>/<YOUR_FILE_PATH>",
       "fileType": "image",
       "height": <YOUR_FILE_HEIGHT>,
       "width": <YOUR_FILE_WIDTH>,
       "thumbnailUrl": "https://ik.imagekit.io/<YOUR_INSTANCE_ID>/tr:n-ik_ml_thumbnail/<YOUR_FILE_PATH>",
       "AITags": null
   }

3. Save metadata: Send a POST request to your backend's /save-metadata endpoint, providing the key details (like fileId, url) received from ImageKit in Step 2.

   curl -X POST http://localhost:3000/save-metadata \
        -H "Content-Type: application/json" \
        -d '{
             "fileId": "<FILE_ID_FROM_STEP_2>",
             "url": "<URL_FROM_STEP_2>"
           }'

   Expected response (from your backend):

   { "success": true }

Expected outcome:

• The file is successfully uploaded to your ImageKit Media Library.
• You can verify a new row corresponding to the uploaded file exists in your imagekit_files table in Lakebase Postgres.

With metadata stored in Lakebase Postgres, your application can easily retrieve references to the media hosted on ImageKit.io.

Query the imagekit_files table from your application's backend whenever you need to display or link to uploaded files.

Example SQL query:

Retrieve files associated with a specific user:

SELECT
    id,             -- Your database primary key
    file_id,        -- ImageKit File ID
    file_url,       -- Base ImageKit CDN URL for the file
    user_id,
    upload_timestamp
FROM
    imagekit_files
WHERE
    user_id = 'user_123'; -- Use the actual authenticated user ID

Using the data:

• The query returns rows containing the file metadata stored in Neon.
• The file_url is the direct link to the file on ImageKit's CDN. You can use this directly in <img> tags, video players, or links.
• ImageKit transformations: A key benefit of ImageKit is real-time manipulation. You can append transformation parameters directly to the file_url to resize, crop, format, or optimize the media on-the-fly. For example, file_url + '?tr=w-300,h-200' would resize an image to 300x200 pixels. Learn more on ImageKit transformation docs for possibilities.

This pattern separates media storage, optimization, and delivery (handled by ImageKit.io) from structured metadata management (handled by Lakebase Postgres).
