Media storage with Cloudinary

Cloudinary is a cloud based platform for image and video management, offering upload, storage, real time manipulation, optimization, and delivery via CDN. Neon Object Storage is S3 compatible object s...

Cloudinary is a cloud-based platform for image and video management, offering upload, storage, real-time manipulation, optimization, and delivery via CDN.

Neon now offers native storage


Neon Object Storage is S3-compatible object storage built into the Neon backend. Object storage branches with your database: each branch gets its own isolated namespace, so you can test file uploads in preview branches without touching production. No separate cloud account needed. Use any S3-compatible SDK with your existing Neon credential.

For more information, see Neon Object Storage.

This guide demonstrates how to integrate Cloudinary with Neon. You'll learn how to securely upload files directly from the client-side to Cloudinary using signatures generated by your backend, and then store the resulting asset metadata (like the Cloudinary Public ID and secure URL) in your database.

  1. Create a Neon project

    1. Navigate to the Neon Console to create a new Neon project.
    2. Copy the connection string by clicking the Connect button in the Console nav. For more information, see Connect from any application.
  2. Create a Cloudinary account and get credentials

    1. Sign up for a free or paid account at Cloudinary.com.

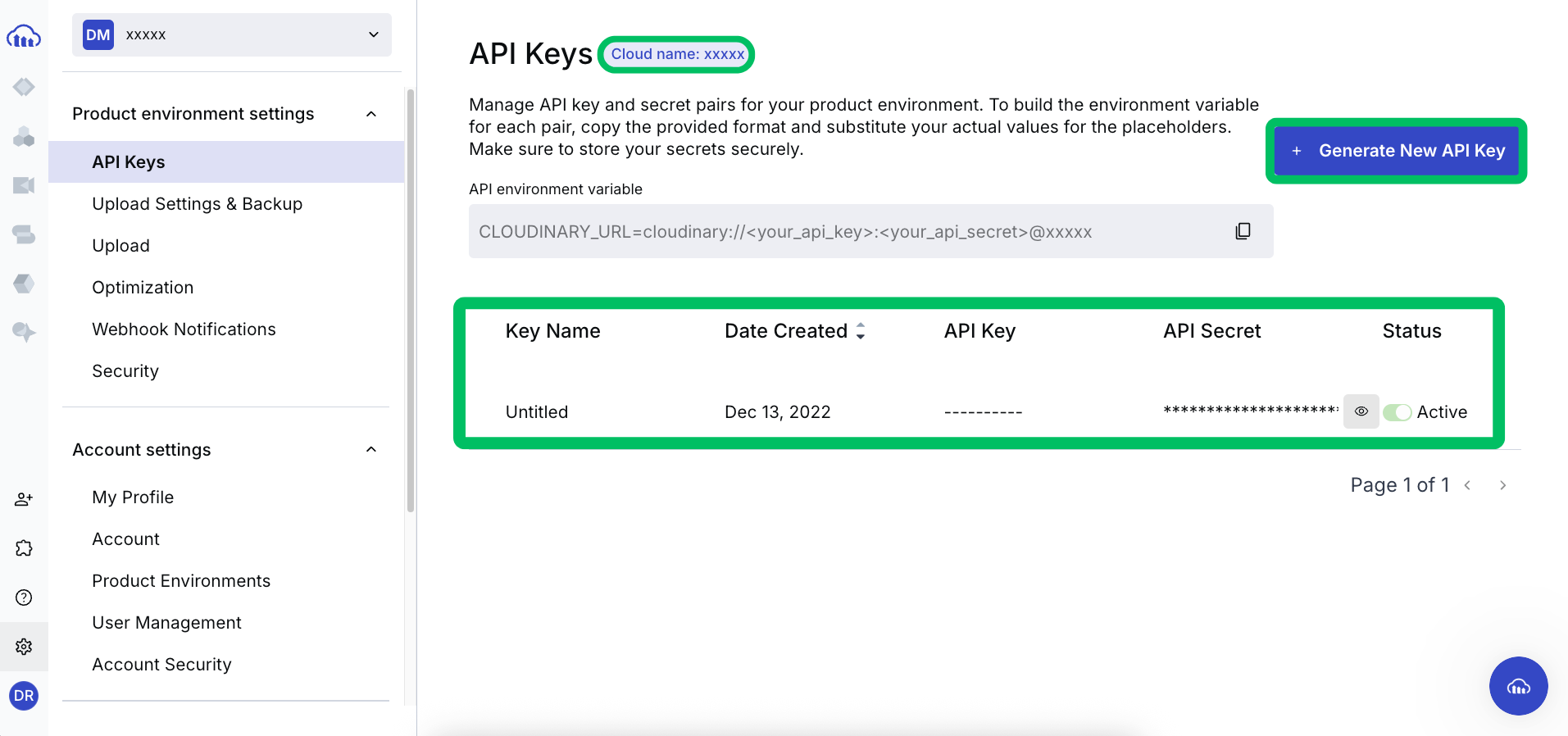

    2. Once logged in, navigate to your Account settings.
    3. Find your Product Environment Credentials which include:
      • Cloud Name
      • API Key
      • API Secret

      Create a new API Key if you do not have one. This key is used to authenticate your application with Cloudinary. Cloudinary API Key

  3. Create a table in Neon for file metadata

    We need a table to store metadata about the assets uploaded to Cloudinary.

    1. Connect to your Neon database using the Neon SQL Editor or a client like psql. Create a table to store relevant details:
      SQL
      CREATE TABLE IF NOT EXISTS cloudinary_files (
          id SERIAL PRIMARY KEY,
          public_id TEXT NOT NULL UNIQUE,  -- Cloudinary's unique identifier for the asset
          media_url TEXT NOT NULL,         -- Media URL for the asset on Cloudinary's CDN
          resource_type TEXT NOT NULL,     -- Type of asset (for example, 'image', 'video', 'raw')
          user_id TEXT NOT NULL,           -- User associated with the file
          upload_timestamp TIMESTAMPTZ DEFAULT NOW()
      );
    2. Run the SQL statement. You can customize this table by adding other useful columns returned by Cloudinary (for example, version, format, width, height, tags).
  4. Upload files to Cloudinary and store metadata in Neon

    The recommended secure approach for client-side uploads to Cloudinary involves signed uploads. Your backend generates a unique signature using your API Secret and specific upload parameters (like timestamp). The client uses this signature, along with your API Key and the parameters, to authenticate the direct upload request to Cloudinary. After a successful upload, the client sends the returned asset metadata back to your backend to save in Neon.

    This requires two backend endpoints:

    1. /generate-signature: Generates a signature, timestamp, and provides the API key for the client upload.
    2. /save-metadata: Receives asset metadata from the client after a successful Cloudinary upload and saves it to the Neon database.

    We'll use Hono for the server, the official cloudinary Node.js SDK for signature generation, and @neondatabase/serverless for Neon.

    First, install the necessary dependencies:

    Bash
    npm install cloudinary @neondatabase/serverless @hono/node-server hono dotenv

    Create a .env file with your credentials:

    Bash
    # Cloudinary Credentials
    CLOUDINARY_CLOUD_NAME=your_cloudinary_cloud_name
    CLOUDINARY_API_KEY=your_cloudinary_api_key
    CLOUDINARY_API_SECRET=your_cloudinary_api_secret

    # Neon Connection String
    DATABASE_URL=your_neon_database_connection_string

    The following code snippet demonstrates this workflow:

    JavaScript
    import { serve } from '@hono/node-server';
    import { Hono } from 'hono';
    import { v2 as cloudinary } from 'cloudinary';
    import { neon } from '@neondatabase/serverless';
    import 'dotenv/config';

    cloudinary.config({
      cloud_name: process.env.CLOUDINARY_CLOUD_NAME,
      api_key: process.env.CLOUDINARY_API_KEY,
      api_secret: process.env.CLOUDINARY_API_SECRET,
      secure: true,
    });

    const sql = neon(process.env.DATABASE_URL);
    const app = new Hono();

    // Replace this with your actual user authentication logic
    const authMiddleware = async (c, next) => {
      // Example: Validate JWT, session, etc. and set user ID
      c.set('userId', 'user_123'); // Static ID for demonstration
      await next();
    };

    // 1. Generate signature for client-side upload
    app.get('/generate-signature', authMiddleware, (c) => {
      try {
        const timestamp = Math.round(new Date().getTime() / 1000);
        const paramsToSign = { timestamp: timestamp };

        const signature = cloudinary.utils.api_sign_request(
          paramsToSign,
          process.env.CLOUDINARY_API_SECRET
        );

        return c.json({
          success: true,
          signature: signature,
          timestamp: timestamp,
          api_key: process.env.CLOUDINARY_API_KEY,
        });
      } catch (error) {
        console.error('Signature Generation Error:', error);
        return c.json({ success: false, error: 'Failed to generate signature' }, 500);
      }
    });

    // 2. Save metadata after client confirms successful upload to Cloudinary
    app.post('/save-metadata', authMiddleware, async (c) => {
      try {
        const userId = c.get('userId');
        // Client sends metadata received from Cloudinary after upload
        const { public_id, secure_url, resource_type } = await c.req.json();

        if (!public_id || !secure_url || !resource_type) {
          throw new Error('public_id, secure_url, and resource_type are required');
        }

        // Insert metadata into Neon database
        await sql`
          INSERT INTO cloudinary_files (public_id, media_url, resource_type, user_id)
          VALUES (${public_id}, ${secure_url}, ${resource_type}, ${userId})
        `;

        console.log(`Metadata saved for Cloudinary asset: ${public_id}`);
        return c.json({ success: true });
      } catch (error) {
        console.error('Metadata Save Error:', error.message);
        return c.json({ success: false, error: 'Failed to save metadata' }, 500);
      }
    });

    const port = 3000;
    serve({ fetch: app.fetch, port }, (info) => {
      console.log(`Server running at http://localhost:${info.port}`);
    });

    Explanation

    1. Setup: Initializes the Neon client (sql), Hono (app), and configures the Cloudinary Node.js SDK using environment variables.
    2. Authentication: Includes a placeholder authMiddleware. Replace this with your actual user authentication logic.
    3. API endpoints:
      • /generate-signature (GET): Creates a current timestamp. Uses cloudinary.utils.api_sign_request with the parameters to sign (at minimum, the timestamp) and your API Secret to generate a signature. It returns the signature, timestamp, and your API Key to the client. These are needed for the client's direct upload request to Cloudinary.
      • /save-metadata (POST): Called by the client after a successful direct upload to Cloudinary. The client sends the relevant asset metadata received from Cloudinary (public_id, secure_url, resource_type). The endpoint saves this information, along with the userId, into the cloudinary_files table in Neon.

    We'll use Flask, the official cloudinary Python SDK, and psycopg2.

    First, install the necessary dependencies:

    Bash
    pip install Flask cloudinary psycopg2-binary python-dotenv

    Create a .env file with your credentials:

    env
    # Cloudinary Credentials
    CLOUDINARY_CLOUD_NAME=your_cloud_name
    CLOUDINARY_API_KEY=your_api_key
    CLOUDINARY_API_SECRET=your_api_secret

    # Neon Connection String
    DATABASE_URL=your_neon_database_connection_string

    The following code snippet demonstrates this workflow:

    Python
    import os
    import time

    import cloudinary
    import cloudinary.utils
    import psycopg2
    from dotenv import load_dotenv
    from flask import Flask, jsonify, request

    load_dotenv()

    cloudinary.config(
        cloud_name=os.getenv("CLOUDINARY_CLOUD_NAME"),
        api_key=os.getenv("CLOUDINARY_API_KEY"),
        api_secret=os.getenv("CLOUDINARY_API_SECRET"),
        secure=True,
    )

    app = Flask(__name__)

    # Use a global PostgreSQL connection pool in production instead of connecting per request
    def get_db_connection():
        return psycopg2.connect(os.getenv("DATABASE_URL"))

    # Replace this with your actual user authentication logic
    def get_authenticated_user_id(request):
        # Example: Validate Authorization header, session cookie, etc.
        return "user_123"  # Static ID for demonstration

    # 1. Generate signature for client-side upload
    @app.route("/generate-signature", methods=["GET"])
    def generate_signature_route():
        try:
            user_id = get_authenticated_user_id(request)
            if not user_id:
                return jsonify({"success": False, "error": "Unauthorized"}), 401

            timestamp = int(time.time())
            params_to_sign = {"timestamp": timestamp}

            signature = cloudinary.utils.api_sign_request(
                params_to_sign, os.getenv("CLOUDINARY_API_SECRET")
            )

            return (
                jsonify(
                    {
                        "success": True,
                        "signature": signature,
                        "timestamp": timestamp,
                        "api_key": os.getenv("CLOUDINARY_API_KEY"),
                    }
                ),
                200,
            )

        except Exception as e:
            print(f"Signature Generation Error: {e}")
            return jsonify({"success": False, "error": "Failed to generate signature"}), 500

    # 2. Save metadata after client confirms successful upload to Cloudinary
    @app.route("/save-metadata", methods=["POST"])
    def save_metadata_route():
        conn = None
        cursor = None
        try:
            user_id = get_authenticated_user_id(request)
            if not user_id:
                return jsonify({"success": False, "error": "Unauthorized"}), 401

            # Client sends metadata received from Cloudinary after upload
            data = request.get_json()
            public_id = data.get("public_id")
            secure_url = data.get("secure_url")
            resource_type = data.get("resource_type")

            if not public_id or not secure_url or not resource_type:
                raise ValueError("public_id, secure_url, and resource_type are required")

            # Insert metadata into Neon database
            conn = get_db_connection()
            cursor = conn.cursor()
            cursor.execute(
                """
                INSERT INTO cloudinary_files (public_id, media_url, resource_type, user_id)
                VALUES (%s, %s, %s, %s)
                """,
                (public_id, secure_url, resource_type, user_id),
            )
            conn.commit()
            print(f"Metadata saved for Cloudinary asset: {public_id}")
            return jsonify({"success": True}), 201

        except (psycopg2.Error, ValueError) as e:
            print(f"Metadata Save Error: {e}")
            return (
                jsonify({"success": False, "error": "Failed to save metadata"}),
                500,
            )
        except Exception as e:
            print(f"Unexpected Metadata Save Error: {e}")
            return jsonify({"success": False, "error": "Server error"}), 500
        finally:
            if cursor:
                cursor.close()
            if conn:
                conn.close()

    if __name__ == "__main__":
        app.run(port=3000, debug=True)

    Explanation

    1. Setup: Initializes Flask (app), the database connection function, and configures the Cloudinary Python SDK using environment variables.
    2. Authentication: Includes a placeholder get_authenticated_user_id function. Replace this with your actual user authentication logic.
    3. API endpoints:
      • /generate-signature (GET): Gets the current timestamp. Uses cloudinary.utils.api_sign_request with the parameters to sign and your API Secret to generate the signature. Returns the signature, timestamp, and API Key to the client.
      • /save-metadata (POST): Called by the client after a successful direct upload to Cloudinary. It receives asset metadata from the client, validates required fields (public_id, secure_url, resource_type), and saves this along with the userId into the cloudinary_files table using psycopg2.
    4. Database Connection: The example shows creating a new connection per request. In production, use a global connection pool for better performance.
  5. Testing the upload workflow

    This workflow involves getting a signature from your backend, using it to upload directly to Cloudinary, and then notifying your backend.

    1. Get signature and parameters: Send a GET request to your backend's /generate-signature endpoint.
      Bash
      curl -X GET http://localhost:3000/generate-signature

      Expected response: A JSON object with the signature, timestamp, and api_key.

      JSON
      {
        "success": true,
        "signature": "a1b2c3d4e5f6...",
        "timestamp": 1713999600,
        "api_key": "YOUR_CLOUDINARY_API_KEY"
      }
    2. Upload file directly to Cloudinary: Use the obtained signature, timestamp, api_key, and the file path to send a POST request with multipart/form-data directly to the Cloudinary Upload API. The URL includes your Cloud Name.
      Bash
      curl -X POST https://api.cloudinary.com/v1_1/<YOUR_CLOUD_NAME>/image/upload \
           -F "file=@/path/to/your/test-image.jpg" \
           -F "api_key=<API_KEY_FROM_STEP_1>" \
           -F "timestamp=<TIMESTAMP_FROM_STEP_1>" \
           -F "signature=<SIGNATURE_FROM_STEP_1>"

      If uploading a video, change the endpoint in the URL from /image/upload to /video/upload.

      Expected response (from Cloudinary): A successful upload returns a JSON object with metadata about the uploaded asset.

      JSON
      {
        "asset_id": "...",
        "public_id": "<PUBLIC_ID>",
        "version": 1713999601,
        "version_id": "...",
        "signature": "...",
        "width": 800,
        "height": 600,
        "format": "jpg",
        "resource_type": "image",
        "created_at": "2025-04-24T05:37:06Z",
        "tags": [],
        "bytes": 123456,
        "type": "upload",
        "etag": "...",
        "placeholder": false,
        "url": "http://res.cloudinary.com/<YOUR_CLOUD_NAME>/image/upload/v1713999601/sample_image_123.jpg",
        "secure_url": "https://res.cloudinary.com/<YOUR_CLOUD_NAME>/image/upload/v1713999601/sample_image_123.jpg",
        "folder": "",
        "original_filename": "test-image",
        "api_key": "YOUR_CLOUDINARY_API_KEY"
      }

      Note the public_id, secure_url, and resource_type in the response. These are needed for the next step.

    3. Save metadata: Send a POST request to your backend's /save-metadata endpoint with the key details received from Cloudinary in Step 2.
      Bash
      curl -X POST http://localhost:3000/save-metadata \
           -H "Content-Type: application/json" \
           -d '{
                "public_id": "<PUBLIC_ID_FROM_STEP_2>",
                "secure_url": "<SECURE_URL_FROM_STEP_2>",
                "resource_type": "<RESOURCE_TYPE_FROM_STEP_2>"
              }'

      Expected response (from your backend):

      JSON
      { "success": true }

    Expected outcome:

    • The file is successfully uploaded to your Cloudinary account (visible in the Media Library).
    • A new row corresponding to the uploaded asset exists in your cloudinary_files table in Neon.
  6. Accessing file metadata and files

    With metadata stored in Neon, your application can retrieve references to the media hosted on Cloudinary.

    Query the cloudinary_files table from your application's backend whenever you need to display or link to uploaded files.

    Example SQL query:

    Retrieve media files associated with a specific user:

    SQL
    SELECT
        id,
        public_id,      -- Cloudinary Public ID
        media_url,      -- HTTPS URL for the asset
        resource_type,
        user_id,
        upload_timestamp
    FROM
        cloudinary_files
    WHERE
        user_id = 'user_123' AND resource_type = 'image'; -- Use actual user ID & desired type

    Using the data:

    • The query returns metadata stored in Neon.
    • The media_url is the direct CDN link to the asset.
    • Cloudinary transformations: Cloudinary excels at on-the-fly transformations. You can manipulate the asset by modifying the media_url. Parameters are inserted between the /upload/ part and the version/public_id part of the URL. For example, to get a 300px wide, cropped version: https://res.cloudinary.com/<CLOUD_NAME>/image/upload/w_300,c_fill/v<VERSION>/<PUBLIC_ID>.<FORMAT>. Explore the extensive Cloudinary transformation documentation.

    This pattern separates media storage, processing, and delivery (handled by Cloudinary) from structured metadata management (handled by Neon).

Join our Discord Server to ask questions or see what others are doing with Neon. For paid plan support options, see Support.

Suggest an edit

Propose a replacement for this page. The site team reviews it before applying any changes.

Export
Documentation menu
