Media storage with ImageKit.io
ImageKit.io is a cloud based image and video optimization and delivery platform. It provides real time manipulation, storage, and delivery via a global CDN, simplifying media management for web and mo...
ImageKit.io is a cloud-based image and video optimization and delivery platform. It provides real-time manipulation, storage, and delivery via a global CDN, simplifying media management for web and mobile applications.
Neon now offers native storage
Neon Object Storage is S3-compatible object storage built into the Neon backend. Object storage branches with your database: each branch gets its own isolated namespace, so you can test file uploads in preview branches without touching production. No separate cloud account needed. Use any S3-compatible SDK with your existing Neon credential.
For more information, see Neon Object Storage.
This guide demonstrates how to integrate ImageKit.io with Neon. You'll learn how to upload files directly from the client-side to ImageKit.io using securely generated authentication parameters from your backend, and then store the resulting file metadata (like the ImageKit File ID and URL) in your Lakebase Postgres database.
Setup steps
Section titled “Setup steps”Create a Neon project
- Navigate to the Neon Console to create a new Neon project.
- Copy the connection string by clicking the Connect button in the Console nav. For more information, see Connect from any application.
Create an ImageKit.io account and get credentials
- Sign up for a free or paid account at ImageKit.io.

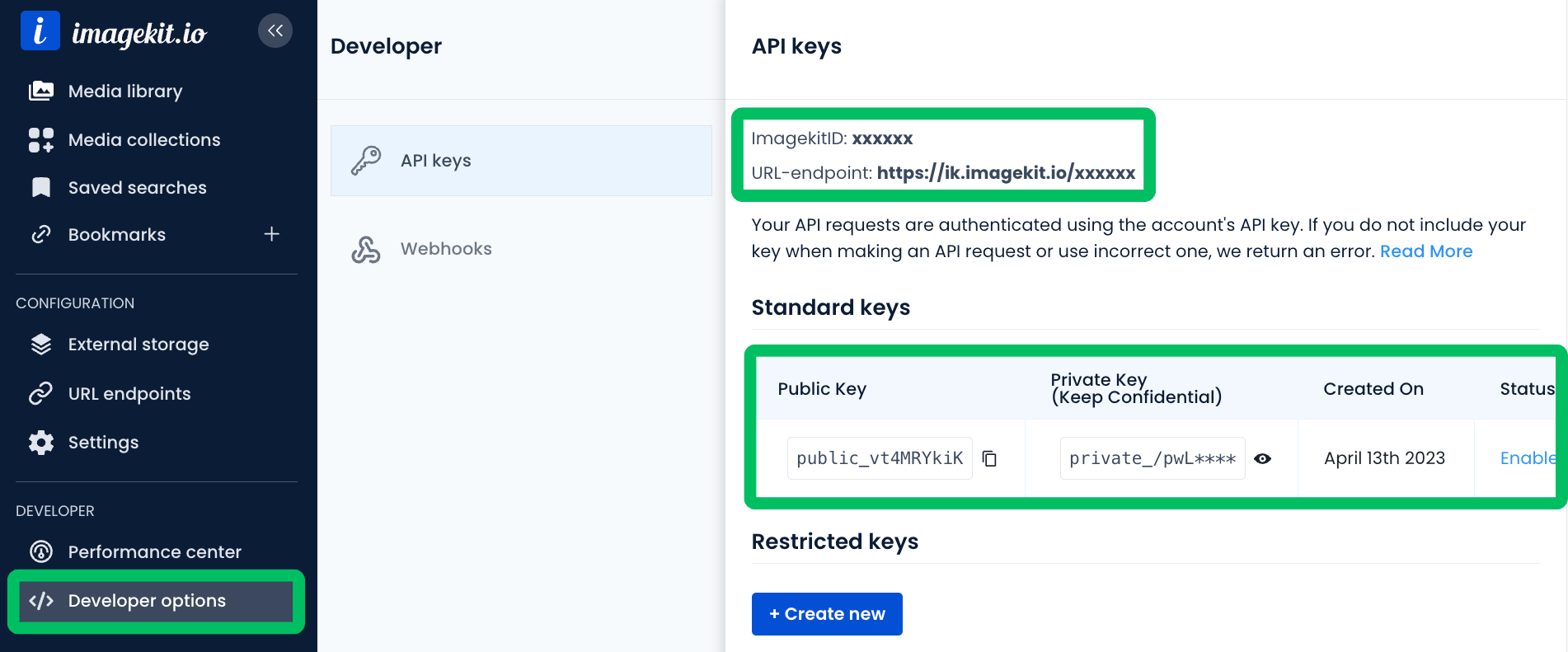

- Once logged in, navigate to the Developer options section in the dashboard sidebar.
- Under API Keys, note your Public Key, Private Key, and URL Endpoint. These are essential for interacting with the ImageKit API and SDKs.

Create a table in Neon for file metadata
We need a table in Lakebase Postgres to store metadata about the files uploaded to ImageKit.io. This allows your application to reference the media stored in ImageKit.
- Connect to your database on Neon using the Neon SQL Editor or a client like psql. Create a table to store relevant details:
SQL CREATE TABLE IF NOT EXISTS imagekit_files ( id SERIAL PRIMARY KEY, file_id TEXT NOT NULL UNIQUE, -- ImageKit.io unique File ID file_url TEXT NOT NULL, -- ImageKit CDN URL for the file user_id TEXT NOT NULL, -- User associated with the file upload_timestamp TIMESTAMPTZ DEFAULT NOW() ); - Run the SQL statement. You can customize this table by adding or removing columns (like
width,height,tags, etc.) based on the information you need from ImageKit and your application's requirements.
- Connect to your database on Neon using the Neon SQL Editor or a client like psql. Create a table to store relevant details:
Upload files to ImageKit.io and store metadata in Neon
The recommended approach for client-side uploads is to generate secure authentication parameters on your backend. The client (for example, a web browser) uses these parameters, along with your public API key, to upload the file directly to ImageKit's Upload API. After a successful upload, the client sends the returned metadata (like
fileIdandurl) back to your backend to be saved in Lakebase Postgres.This requires two backend endpoints:
/generate-auth-params: Generates temporary authentication parameters (token,expire,signature)./save-metadata: Receives file metadata from the client after a successful upload to ImageKit and saves it to the Neon database.
We'll use Hono for the server,
imagekitfor ImageKit interaction, and@neondatabase/serverlessfor Neon.First, install the necessary dependencies:
Bash npm install imagekit @neondatabase/serverless @hono/node-server hono dotenvCreate a
.envfile with your credentials:Bash # ImageKit.io Credentials IMAGEKIT_PUBLIC_KEY=your_imagekit_public_key IMAGEKIT_PRIVATE_KEY=your_imagekit_private_key IMAGEKIT_URL_ENDPOINT=your_imagekit_url_endpoint # Neon Connection String DATABASE_URL=your_neon_database_connection_stringThe following code snippet demonstrates this workflow:
JavaScript import { serve } from '@hono/node-server'; import { Hono } from 'hono'; import ImageKit from 'imagekit'; import { neon } from '@neondatabase/serverless'; import 'dotenv/config'; const imagekit = new ImageKit({ publicKey: process.env.IMAGEKIT_PUBLIC_KEY, privateKey: process.env.IMAGEKIT_PRIVATE_KEY, urlEndpoint: process.env.IMAGEKIT_URL_ENDPOINT, }); const sql = neon(process.env.DATABASE_URL); const app = new Hono(); // Replace this with your actual user authentication logic const authMiddleware = async (c, next) => { // Example: Validate JWT, session, etc. and set user ID c.set('userId', 'user_123'); // Static ID for demonstration await next(); }; // 1. Generate authentication parameters for client-side upload app.get('/generate-auth-params', authMiddleware, (c) => { try { const authParams = imagekit.getAuthenticationParameters(); // These params (token, expire, signature) are sent to the client // The client uses these + public key to upload directly to ImageKit return c.json({ success: true, ...authParams }); } catch (error) { console.error('Auth Param Generation Error:', error); return c.json({ success: false, error: 'Failed to generate auth params' }, 500); } }); // 2. Save metadata after client confirms successful upload to ImageKit app.post('/save-metadata', authMiddleware, async (c) => { try { const userId = c.get('userId'); // Client sends metadata received from ImageKit after upload const { fileId, url } = await c.req.json(); if (!fileId || !url) { throw new Error('fileId and url are required from ImageKit response'); } // Insert metadata into Neon database await sql` INSERT INTO imagekit_files (file_id, file_url, user_id) VALUES (${fileId}, ${url}, ${userId}) `; console.log(`Metadata saved for ImageKit file: ${fileId}`); return c.json({ success: true }); } catch (error) { console.error('Metadata Save Error:', error.message); return c.json({ success: false, error: 'Failed to save metadata' }, 500); } }); const port = 3000; serve({ fetch: app.fetch, port }, (info) => { console.log(`Server running at http://localhost:${info.port}`); });Explanation
- Setup: Initializes the Lakebase Postgres database client (
sql), the Hono web framework (app), and the ImageKit Node.js SDK (imagekit) using credentials from environment variables. - Authentication: Includes a placeholder
authMiddleware. Replace this with your actual user authentication logic to ensure only authenticated users can generate upload parameters and save metadata. - API endpoints:
/generate-auth-params(GET): Uses the ImageKit SDK'sgetAuthenticationParameters()method to create a short-livedtoken,expiretimestamp, andsignature. These are returned to the client./save-metadata(POST): This endpoint is called by the client after it has successfully uploaded a file directly to ImageKit's Upload API. The client sends the relevant metadata returned by ImageKit (likefileId,url,thumbnailUrl, etc.). The endpoint then inserts this metadata, along with the authenticateduserId, into theimagekit_filestable in Lakebase Postgres.
We'll use Flask,
imagekitio(ImageKit Python SDK), andpsycopg2.First, install the necessary dependencies:
Bash pip install Flask imagekitio psycopg2-binary python-dotenvCreate a
.envfile with your credentials:env # ImageKit.io Credentials IMAGEKIT_PUBLIC_KEY=your_imagekit_public_key IMAGEKIT_PRIVATE_KEY=your_imagekit_private_key IMAGEKIT_URL_ENDPOINT=your_imagekit_url_endpoint # for example, https://ik.imagekit.io/your_instance_id # Neon Connection String DATABASE_URL=your_neon_database_connection_stringThe following code snippet demonstrates this workflow:
Python import os import psycopg2 from dotenv import load_dotenv from flask import Flask, jsonify, request from imagekitio.client import ImageKit load_dotenv() imagekit = ImageKit( public_key=os.getenv("IMAGEKIT_PUBLIC_KEY"), private_key=os.getenv("IMAGEKIT_PRIVATE_KEY"), url_endpoint=os.getenv("IMAGEKIT_URL_ENDPOINT"), ) app = Flask(__name__) # Use a global PostgreSQL connection pool in production instead of connecting per request def get_db_connection(): return psycopg2.connect(os.getenv("DATABASE_URL")) # Replace this with your actual user authentication logic def get_authenticated_user_id(request): # Example: Validate Authorization header, session cookie, etc. return "user_123" # Static ID for demonstration # 1. Generate authentication parameters for client-side upload @app.route("/generate-auth-params", methods=["GET"]) def generate_auth_params_route(): try: user_id = get_authenticated_user_id(request) if not user_id: return jsonify({"success": False, "error": "Unauthorized"}), 401 # Generate token, expire timestamp, and signature auth_params = imagekit.get_authentication_parameters() return jsonify( { "success": True, "token": auth_params["token"], "expire": auth_params["expire"], "signature": auth_params["signature"] } ), 200 except Exception as e: print(f"Auth Param Generation Error: {e}") return ( jsonify({"success": False, "error": "Failed to generate auth params"}), 500, ) # 2. Save metadata after client confirms successful upload to ImageKit @app.route("/save-metadata", methods=["POST"]) def save_metadata_route(): conn = None cursor = None try: user_id = get_authenticated_user_id(request) if not user_id: return jsonify({"success": False, "error": "Unauthorized"}), 401 data = request.get_json() file_id = data.get("fileId") url = data.get("url") if not file_id or not url: raise ValueError("fileId and url are required from ImageKit response") # Insert metadata into Neon database conn = get_db_connection() cursor = conn.cursor() cursor.execute( """ INSERT INTO imagekit_files (file_id, file_url, user_id) VALUES (%s, %s, %s) """, (file_id, url, user_id), ) conn.commit() print(f"Metadata saved for ImageKit file: {file_id}") return jsonify({"success": True}), 201 except (psycopg2.Error, ValueError) as e: print(f"Metadata Save Error: {e}") return ( jsonify({"success": False, "error": "Failed to save metadata"}), 500, ) except Exception as e: print(f"Unexpected Metadata Save Error: {e}") return jsonify({"success": False, "error": "Server error"}), 500 finally: if cursor: cursor.close() if conn: conn.close() if __name__ == "__main__": app.run(port=3000, debug=True)Explanation
- Setup: Initializes the Flask web framework (
app), the PostgreSQL client function (get_db_connection) for Lakebase Postgres, and the ImageKit Python SDK (imagekit) using environment variables. - Authentication: Includes a placeholder
get_authenticated_user_idfunction. Replace this with your actual user authentication logic. - API endpoints:
/generate-auth-params(GET): Uses the ImageKit SDK'sget_authentication_parameters()method to createtoken,expire, andsignature. These are returned to the client, usually as JSON./save-metadata(POST): Called by the client after it has successfully uploaded a file directly to ImageKit. The client provides the metadata returned by ImageKit. The backend validates the required fields and inserts the data along with theuserIdinto theimagekit_filestable in Lakebase Postgres usingpsycopg2.
- Database Connection: The example shows creating a new connection per request. In production, use a global connection pool for better performance.
Testing the upload workflow
This workflow involves getting authentication parameters from your backend, using those parameters to upload the file directly to ImageKit via
curl, and then notifying your backend to save the metadata.- Get authentication parameters: Send a
GETrequest to your backend's/generate-auth-paramsendpoint.Bash curl -X GET http://localhost:3000/generate-auth-paramsExpected response: A JSON object containing the necessary parameters. For example:
JSON { "success": true, "token": "20xxxx-xxxx-xxxx-a350-a463b3dd544e", "expire": 1745435716, "signature": "ffxxxxxx5f19b6a22e2bd6bd90ae8a7db21" } - Upload file directly to ImageKit: Use the parameters obtained in Step 1, your ImageKit Public Key, and the file path to send a
POSTrequest withmultipart/form-datadirectly to the ImageKit Upload API.Bash curl -X POST https://upload.imagekit.io/api/v1/files/upload \ -F "file=@/path/to/your/test-image.png" \ -F "publicKey=<YOUR_IMAGEKIT_PUBLIC_KEY>" \ -F "token=<TOKEN_FROM_STEP_1>" \ -F "expire=<EXPIRE_FROM_STEP_1>" \ -F "signature=<SIGNATURE_FROM_STEP_1>" \ -F "fileName=test-image.png" \ -F "useUniqueFileName=true"Expected response (from ImageKit): A successful upload returns a JSON object with details about the uploaded file. Note the
fileId,url, etc.JSON { "fileId": "<YOUR_FILE_ID>", "name": "<YOUR_FILE_NAME>", "size": "<YOUR_FILE_SIZE>", "versionInfo": { "id": "<YOUR_FILE_ID>", "name": "Version 1" }, "filePath": "<YOUR_FILE_PATH>", "url": "https://ik.imagekit.io/<YOUR_INSTANCE_ID>/<YOUR_FILE_PATH>", "fileType": "image", "height": <YOUR_FILE_HEIGHT>, "width": <YOUR_FILE_WIDTH>, "thumbnailUrl": "https://ik.imagekit.io/<YOUR_INSTANCE_ID>/tr:n-ik_ml_thumbnail/<YOUR_FILE_PATH>", "AITags": null } - Save metadata: Send a
POSTrequest to your backend's/save-metadataendpoint, providing the key details (likefileId,url) received from ImageKit in Step 2.Bash curl -X POST http://localhost:3000/save-metadata \ -H "Content-Type: application/json" \ -d '{ "fileId": "<FILE_ID_FROM_STEP_2>", "url": "<URL_FROM_STEP_2>" }'Expected response (from your backend):
JSON { "success": true }
Expected outcome:
- The file is successfully uploaded to your ImageKit Media Library.
- You can verify a new row corresponding to the uploaded file exists in your
imagekit_filestable in Lakebase Postgres.
- Get authentication parameters: Send a
Accessing file metadata and files
With metadata stored in Lakebase Postgres, your application can easily retrieve references to the media hosted on ImageKit.io.
Query the
imagekit_filestable from your application's backend whenever you need to display or link to uploaded files.Example SQL query:
Retrieve files associated with a specific user:
SQL SELECT id, -- Your database primary key file_id, -- ImageKit File ID file_url, -- Base ImageKit CDN URL for the file user_id, upload_timestamp FROM imagekit_files WHERE user_id = 'user_123'; -- Use the actual authenticated user IDUsing the data:
- The query returns rows containing the file metadata stored in Neon.
- The
file_urlis the direct link to the file on ImageKit's CDN. You can use this directly in<img>tags, video players, or links. - ImageKit transformations: A key benefit of ImageKit is real-time manipulation. You can append transformation parameters directly to the
file_urlto resize, crop, format, or optimize the media on-the-fly. For example,file_url + '?tr=w-300,h-200'would resize an image to 300x200 pixels. Learn more on ImageKit transformation docs for possibilities.
This pattern separates media storage, optimization, and delivery (handled by ImageKit.io) from structured metadata management (handled by Lakebase Postgres).
